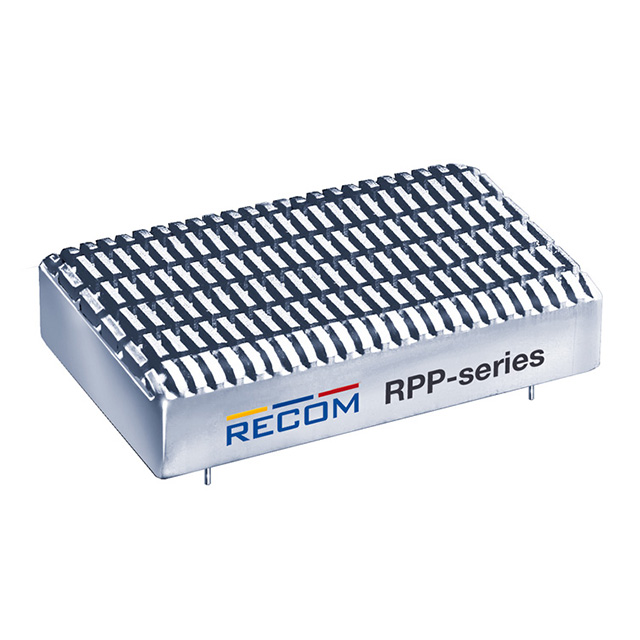

RPP40-2412SW

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 40W DC/DC-CONVERTER 2"X1.2" 3KV REG 4:1

Search across all available documentation for this part.

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 40W DC/DC-CONVERTER 2"X1.2" 3KV REG 4:1

Technical Specifications

Parameters and characteristics for this part

Specification	RPP40-2412SW

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	3.33 A
Efficiency	88 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-45 °C
Package / Case	6-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	1.2 "
Size / Dimension [y]	30.5 mm
Size / Dimension [z]	11.7 mm
Size / Dimension [z]	0.46 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Isolated DC/DC Converters - Through Hole 40W DC/DC-Converter 2"x1.2" 3kV reg 4:1

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Number of Outputs	Package / Case	Voltage - Input (Max) [Max]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Features	Control Features	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Output 1	Power (Watts)	Voltage - Input (Min) [Min]
RECOM Power RPP40-2412SW	1.2 "	11.7 mm	30.5 mm	50.8 mm	2 in	0.46 in	3000 V	1	6-DIP Module	36 V	88 %	-45 °C	75 ░C	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	Through Hole	Isolated Module	3.33 A	12 V	40 W	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole 40W DC/DC-Converter 2"x1.2" 3kV reg 4:1
