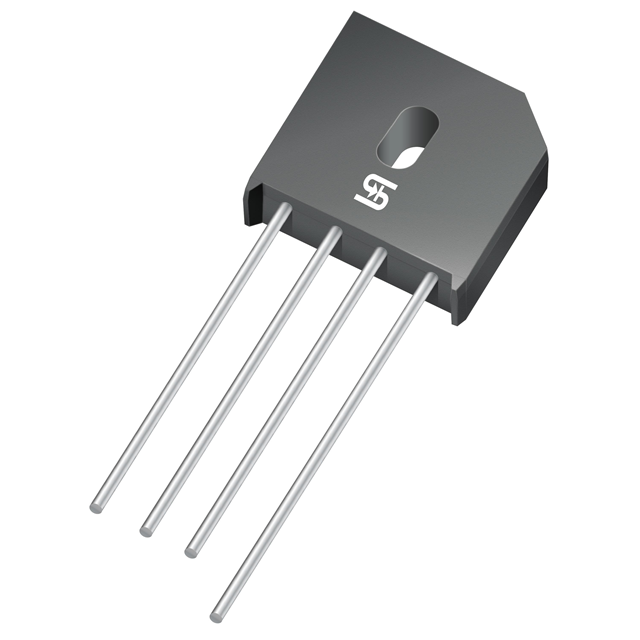

KBU1007G T0G
ObsoleteTaiwan Semiconductor Corporation
BRIDGE RECT 1PHASE 1KV 10A KBU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KBU1007G T0G
ObsoleteTaiwan Semiconductor Corporation
BRIDGE RECT 1PHASE 1KV 10A KBU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KBU1007G T0G |
|---|---|
| Current - Average Rectified (Io) | 10 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | KBU, 4-SIP |
| Supplier Device Package | KBU |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
KBU1007 Series
| Part | Diode Type | Package / Case | Voltage - Peak Reverse (Max) [Max] | Current - Average Rectified (Io) | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Current - Reverse Leakage @ Vr | Technology | Voltage - Forward (Vf) (Max) @ If | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Taiwan Semiconductor Corporation | Single Phase | 4-SIP KBU | 1000 V | 10 A | -55 °C | 150 °C | KBU | 5 µA | Standard | 1.1 V | Through Hole |
Taiwan Semiconductor Corporation | Single Phase | 4-SIP KBU | 1000 V | 10 A | -55 °C | 150 °C | KBU | 5 µA | Standard | 1.1 V | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KBU1007 Series
Bridge Rectifier Single Phase Standard 1 kV Through Hole KBU
