H190C-3

Active

Bivar Inc.

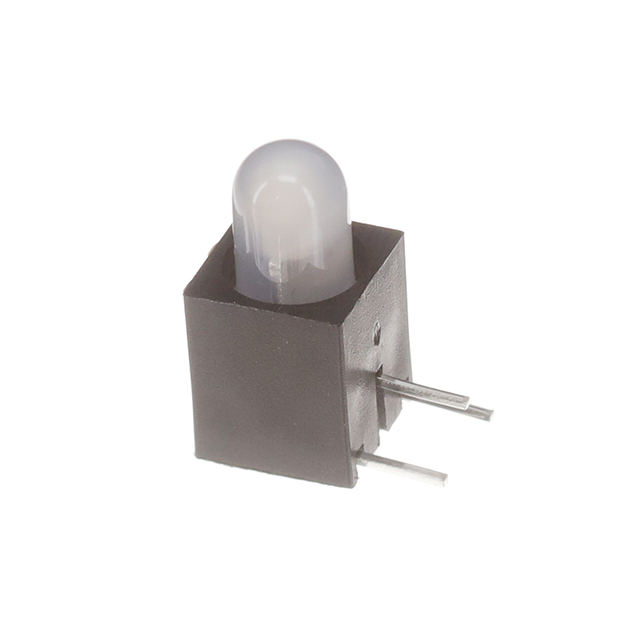

LED ASSEMBLY, RIGHT ANGLE, 5 MM 3-LEAD LED, SINGLE LEVEL, 1 STATION, BI-COLOR HE RED/GREEN, WHITE DIFFUSED LENS / TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

H190C-3

Active

Bivar Inc.

LED ASSEMBLY, RIGHT ANGLE, 5 MM 3-LEAD LED, SINGLE LEVEL, 1 STATION, BI-COLOR HE RED/GREEN, WHITE DIFFUSED LENS / TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H190C-3

Color	Red, Green
Configuration	Single
Current	30 mA
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Type	Diffused, White
Millicandela Rating [custom]	35 mcd
Millicandela Rating [custom]	35 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle [custom]	40 °
Voltage Rating	2.2 V, 2 V
Wavelength - Peak	635 nm, 568 nm

H190 Series

Part	Wavelength - Peak	Configuration	Lens Size	Lens Size	Lens Type	Voltage Rating	Color	Viewing Angle [custom]	Mounting Type	Current	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]
Bivar Inc. H190C-3	568 nm 635 nm	Single	T-1 3/4	5 mm	Diffused White	2 V 2.2 V	Green Red	40 °	Through Hole Right Angle	30 mA	Round with Domed Top	35 mcd	35 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.11
		10	$ 0.73
		100	$ 0.48
		1000	$ 0.38
		2000	$ 0.35
		4900	$ 0.34
		9800	$ 0.33
		25000	$ 0.33
Newark	Each	100	$ 0.58
		500	$ 0.50
		1000	$ 0.44
		2500	$ 0.35
		10000	$ 0.34

Description

General part information

H190 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 30mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
