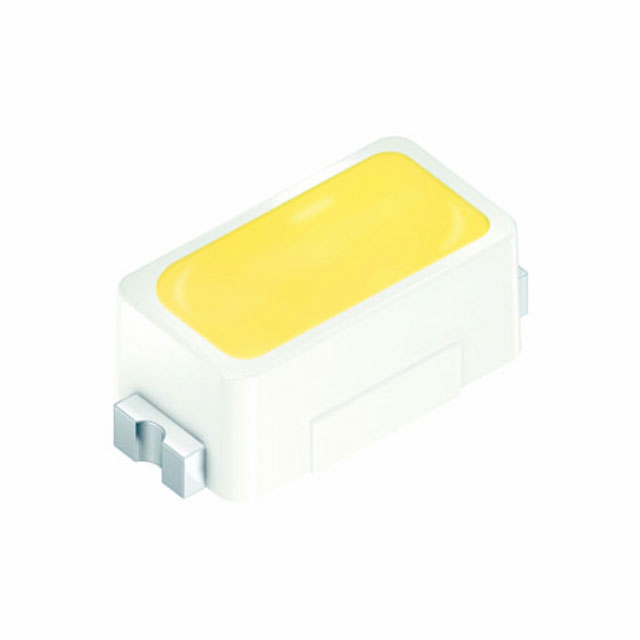

KW DELSS2.CC-BXCY-4L8N-46A8-30-R18
Activeams-OSRAM USA INC.
LED WHITE/NEUTRAL DIFFUSED SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW DELSS2.CC-BXCY-4L8N-46A8-30-R18
Activeams-OSRAM USA INC.
LED WHITE/NEUTRAL DIFFUSED SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW DELSS2.CC-BXCY-4L8N-46A8-30-R18 |
|---|---|
| Color | Neutral, White |
| Current - Test | 30 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Color | Yellow |
| Lens Size [x] | 1.23 mm |
| Lens Size [y] | 0.6 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 2850 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Leads |
| Size / Dimension [x] | 1.4 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| Digi-Reel® | 1 | $ 0.45 | ||
| Tape & Reel (TR) | 2000 | $ 0.10 | ||
| 6000 | $ 0.10 | |||
| 10000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
| 100000 | $ 0.07 | |||
Description
General part information
KWDELSS2 Series
White, Neutral LED Indication - Discrete 3.25V 2-SMD, Flat Leads
