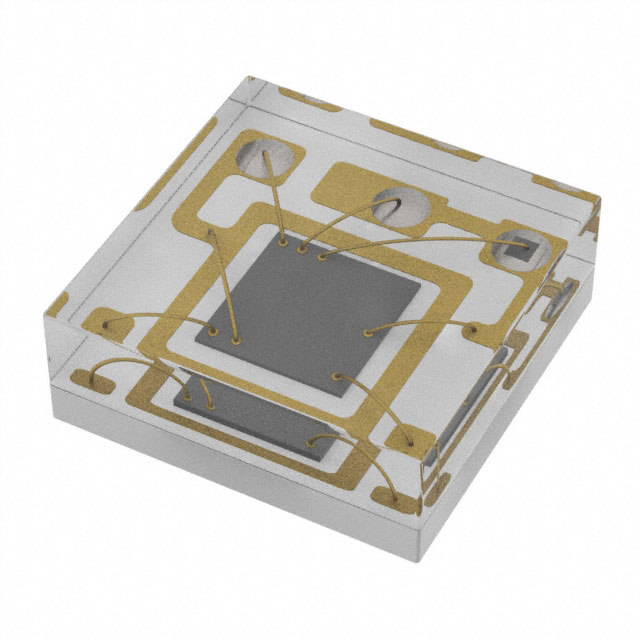

SMD-LX0707RGB-TR
ActiveLumex Opto/Components Inc.
ADDRESS LED PWM RED/GREEN/BLUE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMD-LX0707RGB-TR
ActiveLumex Opto/Components Inc.
ADDRESS LED PWM RED/GREEN/BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMD-LX0707RGB-TR |
|---|---|
| Color | Red, Green, Blue |
| Interface | PWM |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Size / Dimension [x] | 1.8 mm |
| Size / Dimension [y] | 1.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.71 | |
| 10 | $ 0.47 | |||
| 100 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.71 | ||
| 10 | $ 0.47 | |||
| 100 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 2000 | $ 0.22 | ||
| 6000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
Description
General part information
SMD-LX0707 Series
Addressable Lighting - 1 LED PWM Red, Green, Blue (RGB) 1.80mm L x 1.80mm W
