24_BNC-50-2-13/133_NH

Active

Huber+Suhner, Inc.

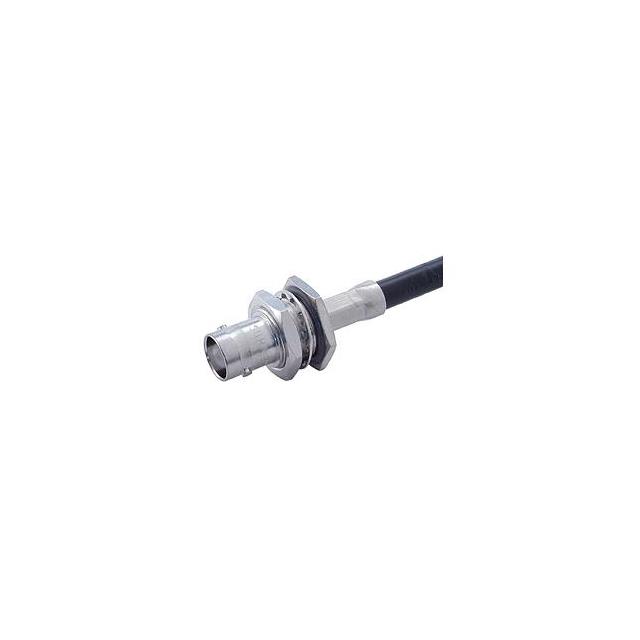

RF BNC CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CRIMP TERMINAL, JACK,

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF BNC CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CRIMP TERMINAL, JACK,

Technical Specifications

Parameters and characteristics for this part

Specification	24_BNC-50-2-13/133_NH

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Connector Type	Body Finish	Dielectric Material	Connector Style	Impedance	Center Contact Material	Contact Termination	Voltage Rating	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Shield Termination	Fastening Type	Frequency - Max [Max]	Mating Cycles	Mounting Feature	Number of Ports	Housing Color	Body Material	Cable Group
Huber+Suhner, Inc. 24_BNC-50-6-1/12-_NE	Female Socket Jack	Nickel	Polytetrafluoroethylene (PTFE)	BNC	50 Ohms	Beryllium Copper	Crimp	500 V	RG-B6C	-60 °C	165 °C	Gold	Clamp	Bayonet Lock	4 GHz	500	Bulkhead - Front Side Nut	1	Silver	Brass
Huber+Suhner, Inc. 24_BNC-50-2-14/133_NH
Huber+Suhner, Inc. 24_BNC-50-2-13/133_NH	Female Socket Jack	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	BNC	50 Ohms	Beryllium Copper	Crimp	500 V	188 316 RG-174	-65 ░C	165 °C	Gold	Crimp	Bayonet Lock	4 GHz	500	Bulkhead - Front Side Nut	1	Silver	Brass
Huber+Suhner, Inc. 24_BNC-50-3-25/133_NH	Female Socket Jack	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	BNC	50 Ohms	Beryllium Copper	Crimp	500 V	RG-142	-65 ░C	165 °C	Gold	Crimp	Bayonet Lock	4 GHz	500	Bulkhead - Front Side Nut	1	Silver	Brass	400
Huber+Suhner, Inc. 24_BNC-50-7-3/133_NE	Female Socket Jack	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	BNC	50 Ohms	Beryllium Copper	Crimp	500 V	RG-213	-65 ░C	165 °C	Gold	Crimp	Bayonet Lock	4 GHz	500	Bulkhead - Front Side Nut	1	Silver	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 17.21

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
