800-80-007-30-001101

Active

PRECI-DIP SA

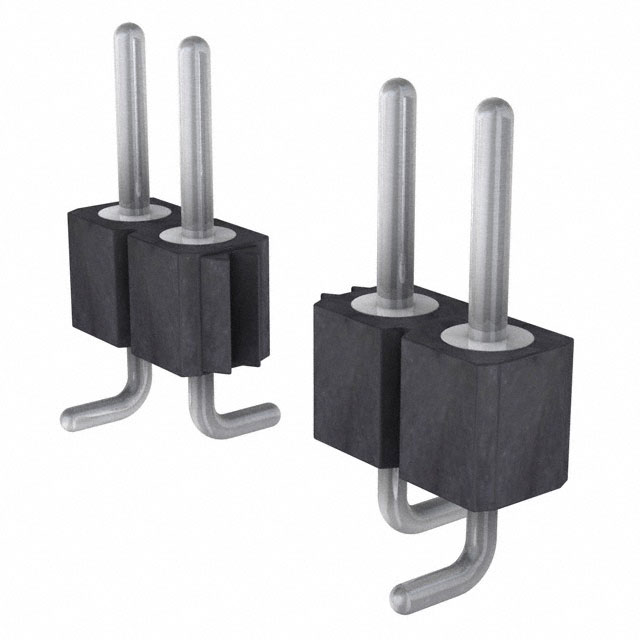

CONN HEADER SMD 7POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

800-80-007-30-001101

Active

PRECI-DIP SA

CONN HEADER SMD 7POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	800-80-007-30-001101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.191 in
Contact Length - Mating	4.85 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.95 mm
Insulation Height	0.116 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

800-80 Series

...

Part	Number of Rows	Insulation Color	Material Flammability Rating	Shrouding	Contact Length - Post	Contact Length - Post	Contact Type	Current Rating (Amps)	Number of Positions Loaded	Fastening Type	Contact Material	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Insulation Material	Termination	Contact Shape	Voltage Rating	Insulation Height	Insulation Height	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
PRECI-DIP SA 800-80-029-10-002101	1	Black	UL94 V-0	Unshrouded	0.118 in	3 mm	Male Pin	3 A	All	Push-Pull	Brass	29	Header	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Tin	0.141 in	3.6 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Circular	150 VDC	2.95 mm	0.116 in
PRECI-DIP SA 800-80-037-65-001101	1	Black	UL94 V-0	Unshrouded		2.79 mm	Male Pin	3 A	All	Push-Pull	Bronze	37	Header	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Tin		0.191 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	Circular	150 VDC	2.95 mm	0.116 in	4.85 mm	10.85 mm	0.427 "	0.11 in
PRECI-DIP SA 800-80-030-66-001101	1	Black	UL94 V-0	Unshrouded			Male Pin	3 A	All	Push-Pull	Bronze	30	Header	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Tin		0.191 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	Circular	150 VDC	2.95 mm	0.116 in	4.85 mm	11.85 mm	0.467 in	0.15 in	3.81 mm
PRECI-DIP SA 800-80-007-30-001101	1	Black	UL94 V-0	Unshrouded			Male Pin	3 A	All	Push-Pull	Brass	7	Header	0.1 in	2.54 mm	-55 °C	125 °C	Surface Mount	Tin		0.191 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Circular	150 VDC	2.95 mm	0.116 in	4.85 mm
PRECI-DIP SA 800-80-008-65-001101	1	Black	UL94 V-0	Unshrouded		2.79 mm	Male Pin	3 A	All	Push-Pull	Bronze	8	Header	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Tin		0.191 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	Circular	150 VDC	2.95 mm	0.116 in	4.85 mm	10.85 mm	0.427 "	0.11 in
PRECI-DIP SA 800-80-042-10-001101	1	Black	UL94 V-0	Unshrouded	0.121 in	3.08 mm	Male Pin	3 A	All	Push-Pull	Brass	42	Header	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Tin		0.191 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Circular	150 VDC	2.95 mm	0.116 in	4.85 mm	11.12 mm	0.438 in
PRECI-DIP SA 800-80-018-10-001101	1	Black	UL94 V-0	Unshrouded	0.121 in	3.08 mm	Male Pin	3 A	All	Push-Pull	Brass	18	Header	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Tin		0.191 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Circular	150 VDC	2.95 mm	0.116 in	4.85 mm	11.12 mm	0.438 in
PRECI-DIP SA 800-80-062-10-002101	1	Black	UL94 V-0	Unshrouded	0.118 in	3 mm	Male Pin	3 A	All	Push-Pull	Brass	62	Header	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Tin	0.141 in	3.6 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	Circular	150 VDC	2.95 mm	0.116 in
PRECI-DIP SA 800-80-061-66-001101	1	Black	UL94 V-0	Unshrouded			Male Pin	3 A	All	Push-Pull	Bronze	61	Header	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Tin		0.191 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	Circular	150 VDC	2.95 mm	0.116 in	4.85 mm	11.85 mm	0.467 in	0.15 in	3.81 mm
PRECI-DIP SA 800-80-002-66-001101	1	Black	UL94 V-0	Unshrouded			Male Pin	3 A	All	Push-Pull	Bronze	2	Header	0.1 in	2.54 mm	-55 °C	125 °C	Through Hole	Tin		0.191 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	Circular	150 VDC	2.95 mm	0.116 in	4.85 mm	11.85 mm	0.467 in	0.15 in	3.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.72

Description

General part information

800-80 Series

Connector Header Surface Mount 7 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
