PWR1300AC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN +1

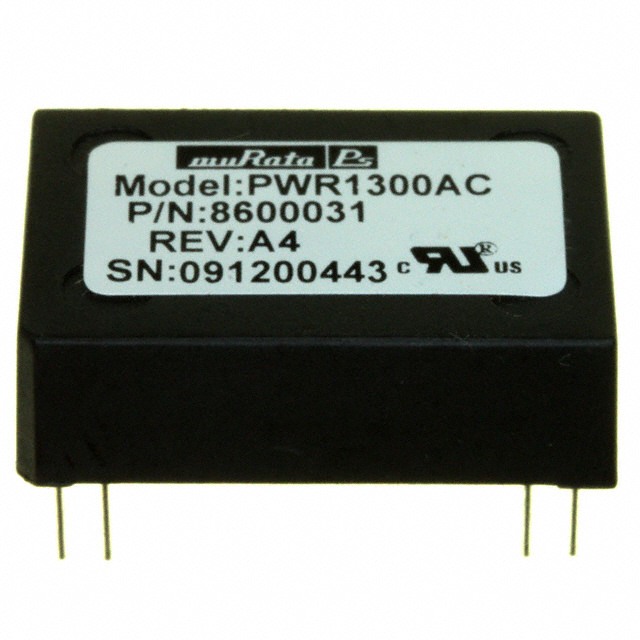

PWR1300AC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 2W

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PWR1300AC

Applications	ITE (Commercial)
Current - Output (Max) [Max]	300 mA
Efficiency	75 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	9 PC Pad
Package / Case	24-DIP Module
Power (Watts)	2 W
Size / Dimension	20.5 mm, 32.3 mm, 10.2 mm
Size / Dimension [x]	1.27 in
Size / Dimension [y]	0.81 in
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

PWR13 Series

Part	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Output 1	Mounting Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Applications	Voltage - Isolation	Number of Outputs	Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
Murata Power Solutions Inc. PWR1300AC	10.2 mm 20.5 mm 32.3 mm	1.27 in	0.81 in	0.4 "	4.5 V	5 V	Through Hole	5.5 V	300 mA	75 %	ITE (Commercial)	4000 V	1	Isolated Module	2 W	85 °C	-40 °C	9 PC Pad	24-DIP Module
Murata Power Solutions Inc. PWR1311AC	10.2 mm 20.5 mm 32.3 mm	1.27 in	0.81 in	0.4 "	10.8 V	15 V	Through Hole	13.2 V		75 %	ITE (Commercial)	4000 V	2	Isolated Module	2 W	100 °C	-55 °C	9 PC Pad	24-DIP Module	50 mA	50 mA	-15 V
Murata Power Solutions Inc. PWR1306AC	10.2 mm 20.5 mm 32.3 mm	1.27 in	0.81 in	0.4 "	10.8 V	5 V	Through Hole	13.2 V	300 mA	75 %	ITE (Commercial)	4000 V	1	Isolated Module	2 W	85 °C	-40 °C	9 PC Pad	24-DIP Module
Murata Power Solutions Inc. PWR1303AC	10.2 mm 20.5 mm 32.3 mm	1.27 in	0.81 in	0.4 "	4.5 V	5 V	Through Hole	5.5 V		75 %	ITE (Commercial)	4000 V	2	Isolated Module	2 W	85 °C	-40 °C	9 PC Pad	24-DIP Module		150 mA	-5 V	150 mA
Murata Power Solutions Inc. PWR1301AC	10.2 mm 20.5 mm 32.3 mm	1.27 in	0.81 in	0.4 "	4.5 V	12 V	Through Hole	5.5 V	125 mA	75 %	ITE (Commercial)	4000 V	1	Isolated Module	2 W	85 °C	-40 °C	9 PC Pad	24-DIP Module
Murata Power Solutions Inc. PWR1307AC	10.2 mm 20.5 mm 32.3 mm	1.27 in	0.81 in	0.4 "	10.8 V	12 V	Through Hole	13.2 V	125 mA	75 %	ITE (Commercial)	4000 V	1	Isolated Module	2 W	85 °C	-40 °C	9 PC Pad	24-DIP Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 36.72
		25	$ 35.61
		50	$ 31.04
		100	$ 29.71
		250	$ 29.04
Newark	Each	50	$ 34.54
		100	$ 33.16

Description

General part information

PWR13 Series

Isolated Module DC DC Converter 1 Output 5V 300mA 4.5V - 5.5V Input

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
