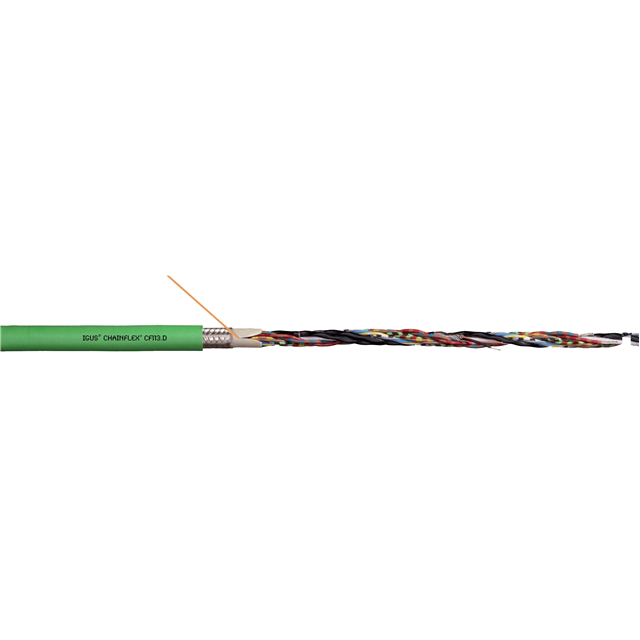

CF113-014-D

Active

Igus

CABLE 10COND 20AWG/24AWG FEET

Deep-Dive with AI

Search across all available documentation for this part.

CF113-014-D

Active

Igus

CABLE 10COND 20AWG/24AWG FEET

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CF113-014-D

Cable Type	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Tinned
Features	Flame Retardant, Oil Resistant, Abrasion Resistant, Rip Cord
Jacket (Insulation) Diameter [diameter]	11 mm
Jacket (Insulation) Diameter [diameter]	0.433 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Green
Length	Enter Number of Feet in Order Quantity
Number of Conductors	10
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Servo Motor, Industrial
Voltage	50 V
Wire Gauge	20 AWG, 24 AWG

CF113 Series

Part	Usage	Wire Gauge	Jacket Color	Shield Coverage	Conductor Insulation	Shield Type	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Conductor Material	Number of Conductors	Features	Cable Type	Voltage	Wire Gauge
Igus CF113-036-D	Industrial Servo Motor	24 AWG	Green	90 % 100 %	Thermoplastic Elastomer (TPE)	Braid Foil	Aluminum Copper Tinned	Polyurethane (PU)	8.51 mm	0.335 "	Enter Number of Feet in Order Quantity	Copper Tinned	10	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Multi-Pair	50 V
Igus CF113-015-D	Industrial Servo Motor		Green	90 % 100 %	Thermoplastic Elastomer (TPE)	Braid Foil	Aluminum Copper Tinned	Polyurethane (PU)	8.99 mm	0.354 in	Enter Number of Feet in Order Quantity	Copper Tinned	12	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Multi-Conductor	50 V	20 AWG 26 AWG
Igus CF113-011-D	Industrial Servo Motor		Green	90 % 100 %	Thermoplastic Elastomer (TPE)	Braid Foil	Aluminum Copper Tinned	Polyurethane (PU)	10.01 mm	0.394 in	Enter Number of Feet in Order Quantity	Copper Tinned	12	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Multi-Conductor	50 V	20 22
Igus CF113-008-D	Industrial Servo Motor	24 AWG	Green	90 % 100 %	Thermoplastic Elastomer (TPE)	Braid Foil	Aluminum Copper Tinned	Polyurethane (PU)	7.49 mm	0.295 in	Enter Number of Feet in Order Quantity	Copper Tinned	6	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Multi-Pair	50 V
Igus CF113-028-D	Industrial Servo Motor	22 AWG 26 AWG	Green	90 % 100 %	Thermoplastic Elastomer (TPE)	Braid Foil	Aluminum Copper Tinned	Polyurethane (PU)	7.49 mm	0.295 in	Enter Number of Feet in Order Quantity	Copper Tinned	6	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Multi-Conductor	50 V
Igus CF113-013-D	Industrial Servo Motor		Green	90 % 100 %	Thermoplastic Elastomer (TPE)	Braid Foil	Aluminum Copper Tinned	Polyurethane (PU)	8.99 mm	0.354 in	Enter Number of Feet in Order Quantity	Copper Tinned	8	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Multi-Conductor	50 V	20 AWG 26 AWG
Igus CF113-040-D	Industrial Servo Motor		Green	90 % 100 %	Thermoplastic Elastomer (TPE)	Braid Foil	Aluminum Copper Tinned	Polyurethane (PU)	10.01 mm	0.394 in	Enter Number of Feet in Order Quantity	Copper Tinned	18	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Multi-Conductor	50 V	16 AWG 22 AWG 26 AWG
Igus CF113-022-D	Industrial Servo Motor	20 AWG 24 AWG	Green	90 % 100 %	Thermoplastic Elastomer (TPE)	Braid Foil	Aluminum Copper Tinned	Polyurethane (PU)			Enter Number of Feet in Order Quantity	Copper Tinned	7	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Multi-Conductor	50 V
Igus CF113-014-D	Industrial Servo Motor	20 AWG 24 AWG	Green	90 % 100 %	Thermoplastic Elastomer (TPE)	Braid Foil	Aluminum Copper Tinned	Polyurethane (PU)	11 mm	0.433 in	Enter Number of Feet in Order Quantity	Copper Tinned	10	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Multi-Conductor	50 V
Igus CF113-006-D	Industrial Servo Motor		Green	90 % 100 %	Thermoplastic Elastomer (TPE)	Braid Foil	Aluminum Copper Tinned	Polyurethane (PU)	11 mm	0.433 in	Enter Number of Feet in Order Quantity	Copper Tinned	16	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Multi-Conductor	50 V	20 AWG 24 AWG 26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.73
		100	$ 8.39
		500	$ 8.06
		1000	$ 7.04

Description

General part information

CF113 Series

10 (4 Twisted Pairs + 2) Conductor Multi-Conductor Cable Green 20 AWG, 24 AWG Foil, Braid Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

No documents available
