1303EPU 010500

Active

Belden Inc.

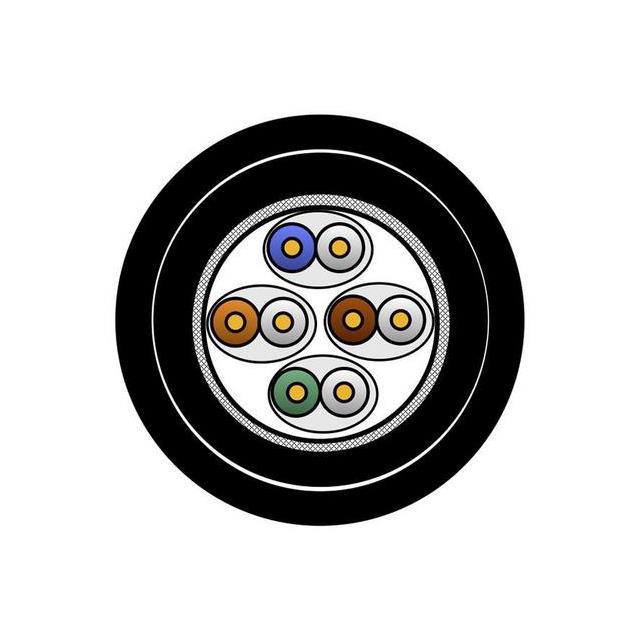

CATSNAKE CAT 6A S/FTP PVC

Search across all available documentation for this part.

Active

Belden Inc.

CATSNAKE CAT 6A S/FTP PVC

Technical Specifications

Parameters and characteristics for this part

Specification	1303EPU 010500

Cable Type	Multi-Pair, Cat6a
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.34 in
Jacket (Insulation) Diameter [diameter]	8.64 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Coverage	80 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Ethernet, Audio
Voltage	72 V
Wire Gauge	24 AWG

Part	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Shield Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Wire Gauge	Voltage	Number of Conductors	Length	Length	Conductor Material	Cable Type	Jacket (Insulation) Material	Length [x]	Length [x]
Belden Inc. 1303EPU 0101640	Black	0.34 in	8.64 mm	Drain Wire	Audio Ethernet	32 AWG	7	Foam Polyethylene (FPE)	Aluminum Polyester Copper Tinned	80 % 100 %	-30 ░C	60 °C	Braid Foil	24 AWG	72 V	8	1640 ft	499.9 m	Copper Bare	Multi-Pair Cat6a	Poly-Vinyl Chloride (PVC)
Belden Inc. 1303EPU 010500	Black	0.34 in	8.64 mm	Drain Wire	Audio Ethernet	32 AWG	7	Foam Polyethylene (FPE)	Aluminum Polyester Copper Tinned	80 % 100 %	-30 ░C	60 °C	Braid Foil	24 AWG	72 V	8			Copper Bare	Multi-Pair Cat6a	Poly-Vinyl Chloride (PVC)	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (4 Pair) Conductor Multi-Pair, Cat6a Cable Black 24 AWG Foil, Braid 500.0' (152.4m)
