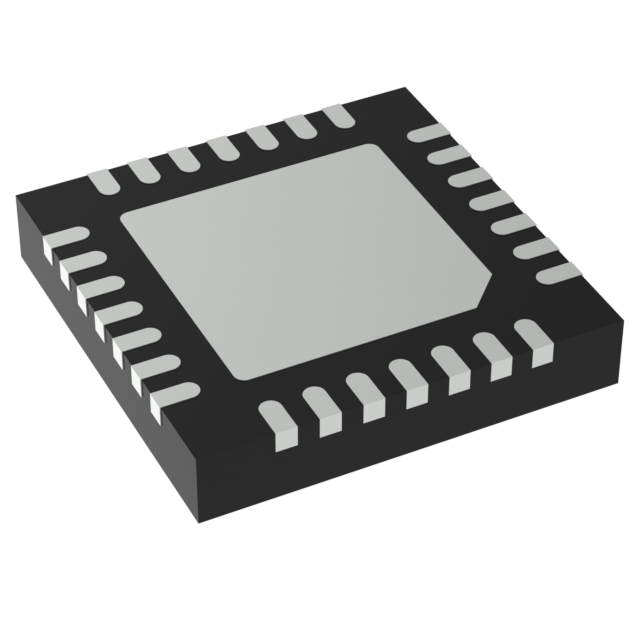

CS8416-DNZR

Obsolete

Cirrus Logic Inc.

IC AUDIO RECEIVER 28QFN

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC AUDIO RECEIVER 28QFN

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Number of Channels	Supplier Device Package	Package / Case	Package / Case [x]	Package / Case [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Interface	Mounting Type	Specifications [Min]	Specifications [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
Cirrus Logic Inc. CS8416-DSZ	Digital Audio Interfacing	8	28-SOIC	28-SOIC	0.295 in	7.5 mm	5 V	3.3 V	Audio Receiver	I2C SPI	Surface Mount	32 kHz	192 kHz	85 °C	-40 °C
Cirrus Logic Inc. CS8416-CZZR	Digital Audio Interfacing	8	28-TSSOP	28-TSSOP		4.4 mm	5 V	3.3 V	Audio Receiver	I2C SPI	Surface Mount	32 kHz	192 kHz	70 °C	-10 °C	0.173 in
Cirrus Logic Inc. CS8416-DNZR	Digital Audio Interfacing	8	28-QFN (5x5)	28-VFQFN Exposed Pad			5 V	3.3 V	Audio Receiver	I2C SPI	Surface Mount			85 °C	-40 °C
Cirrus Logic Inc. CS8416-DZZ	Digital Audio Interfacing	8	28-TSSOP	28-TSSOP		4.4 mm	5 V	3.3 V	Audio Receiver	I2C SPI	Surface Mount	32 kHz	192 kHz	85 °C	-40 °C	0.173 in
Cirrus Logic Inc. CS8416-CZZ	Digital Audio Interfacing	8	28-TSSOP	28-TSSOP		4.4 mm	5 V	3.3 V	Audio Receiver	I2C SPI	Surface Mount	32 kHz	192 kHz	70 °C	-10 °C	0.173 in
Cirrus Logic Inc. CS8416-CSZR	Digital Audio Interfacing	8	28-SOIC	28-SOIC	0.295 in	7.5 mm	5 V	3.3 V	Audio Receiver	I2C SPI	Surface Mount	32 kHz	192 kHz	70 °C	-10 °C
Cirrus Logic Inc. CS8416-DZZR	Digital Audio Interfacing	8	28-TSSOP	28-TSSOP		4.4 mm	5 V	3.3 V	Audio Receiver	I2C SPI	Surface Mount	32 kHz	192 kHz	85 °C	-40 °C	0.173 in
Cirrus Logic Inc. CS8416-CSZ	Digital Audio Interfacing	8	28-SOIC	28-SOIC	0.295 in	7.5 mm	5 V	3.3 V	Audio Receiver	I2C SPI	Surface Mount	32 kHz	192 kHz	70 °C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Audio Audio Receiver 8 Channel 28-QFN (5x5)

Technical documentation and resources

No documents available
