19-139.015

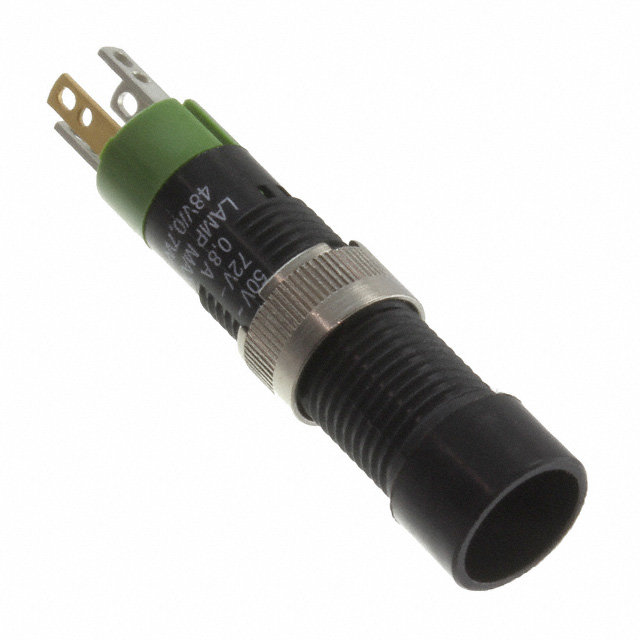

ActivePUSHBUTTON SWITCH, 19 SERIES, 8 MM, SPST-NO, MOMENTARY, ROUND
Deep-Dive with AI
Search across all available documentation for this part.
19-139.015
ActivePUSHBUTTON SWITCH, 19 SERIES, 8 MM, SPST-NO, MOMENTARY, ROUND
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19-139.015 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 800 mA |
| Ingress Protection | IP40 |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 8 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2 mm |
| Termination Style | 0.079 in |
| Type | Standard |
| Voltage Rating - AC | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.08 | |
| 10 | $ 20.05 | |||
| 25 | $ 19.15 | |||
| 50 | $ 18.13 | |||
| 100 | $ 17.46 | |||
| 250 | $ 16.33 | |||
| 500 | $ 13.94 | |||
Description
General part information
19-139 Series
The 19-139.015 is a single-pole single-throw (SPST) illuminated Pushbutton Switch with a polyphenylene oxide actuator, silver contacts and solder terminal. The 19 series switch equipped with snap-action switching elements, maintained function and 1NO contact. The universal terminals of the low-level switching elements permit them to be mounted on printed circuit boards (PCB).
