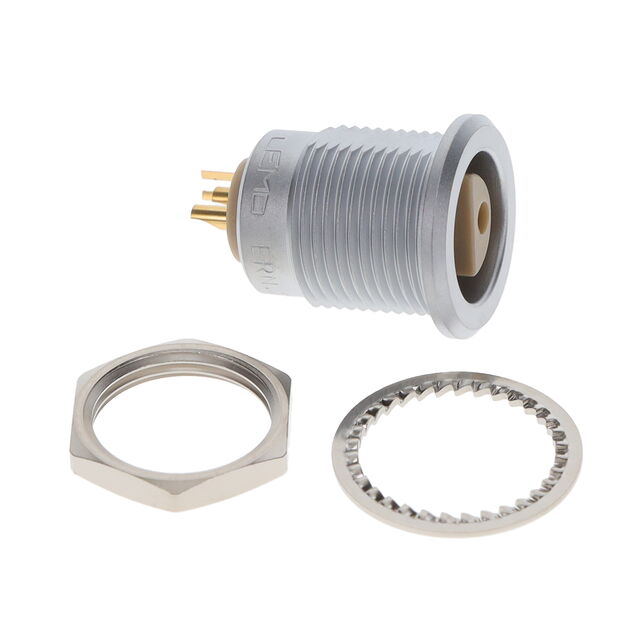

ERN.2S.302.CLL
ActiveLEMO
CONN CIRC RCPT 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERN.2S.302.CLL
ActiveLEMO
CONN CIRC RCPT 2P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ERN.2S.302.CLL |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Male Pins, Receptacle |
| Contact Finish - Mating | Gold |
| Contact Material | Bronze, Brass |
| Current Rating (Amps) | 20 A |
| Fastening Type | Push-Pull |
| Features | Ground |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 2 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 302 |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.67 | |
| 10 | $ 32.99 | |||
| 25 | $ 31.56 | |||
| 50 | $ 30.54 | |||
| 100 | $ 29.52 | |||
| 250 | $ 27.90 | |||
Description
General part information
ERN.2S Series
2 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
