835-43-003-40-030001

Active

Mill-Max Manufacturing Corp.

CONN RCPT 3POS 0.1 GOLD SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

835-43-003-40-030001

Active

Mill-Max Manufacturing Corp.

CONN RCPT 3POS 0.1 GOLD SMD R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	835-43-003-40-030001

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.1 mm
Insulation Height	0.083 "
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

835-43 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Fastening Type	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Shape	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Mounting Type	Insulation Color	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Positions	Termination	Contact Finish - Post	Contact Material	Insulation Height	Insulation Height	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Number of Positions
Mill-Max Manufacturing Corp. 835-43-070-10-001000	-55 °C	125 °C	Gold	Push-Pull	2	0.1 in	2.54 mm	2.03 mm	0.08 in	Circular	Pass Through Receptacle	200 µin	5.08 µm	UL94 V-0	Through Hole	Black	Female Socket	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	70	Solder	Tin	Beryllium Copper	0.13 in	3.3 mm	All	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 835-43-018-10-001000	-55 °C	125 °C	Gold	Push-Pull	2	0.1 in	2.54 mm	2.03 mm	0.08 in	Circular	Pass Through Receptacle	200 µin	5.08 µm	UL94 V-0	Through Hole	Black	Female Socket	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	18	Solder	Tin	Beryllium Copper	0.13 in	3.3 mm	All	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 835-43-042-10-001000	-55 °C	125 °C	Gold	Push-Pull	2	0.1 in	2.54 mm	2.03 mm	0.08 in	Circular	Pass Through Receptacle	200 µin	5.08 µm	UL94 V-0	Through Hole	Black	Female Socket	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	42	Solder	Tin	Beryllium Copper	0.13 in	3.3 mm	All	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 835-43-002-40-030001			Gold	Push-Pull	1	0.1 in	2.54 mm			Circular	Receptacle	200 µin	5.08 µm		Surface Mount Right Angle	Black	Female Socket	30 Áin	0.76 Ám	Polyamide (PA46) Nylon 4/6	2	Solder	Tin	Beryllium Copper	0.083 "	2.1 mm	All			3 A
Mill-Max Manufacturing Corp. 835-43-062-10-001000	-55 °C	125 °C	Gold	Push-Pull	2	0.1 in	2.54 mm	2.03 mm	0.08 in	Circular	Pass Through Receptacle	200 µin	5.08 µm	UL94 V-0	Through Hole	Black	Female Socket	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	62	Solder	Tin	Beryllium Copper	0.13 in	3.3 mm	All	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 835-43-004-40-030001			Gold	Push-Pull	1	0.1 in	2.54 mm			Circular	Receptacle	200 µin	5.08 µm		Surface Mount Right Angle	Black	Female Socket	30 Áin	0.76 Ám	Polyamide (PA46) Nylon 4/6	4	Solder	Tin	Beryllium Copper	0.083 "	2.1 mm	All			3 A
Mill-Max Manufacturing Corp. 835-43-003-40-030001			Gold	Push-Pull	1	0.1 in	2.54 mm			Circular	Receptacle	200 µin	5.08 µm		Surface Mount Right Angle	Black	Female Socket	30 Áin	0.76 Ám	Polyamide (PA46) Nylon 4/6		Solder	Tin	Beryllium Copper	0.083 "	2.1 mm	All			3 A
Mill-Max Manufacturing Corp. 835-43-016-10-001000	-55 °C	125 °C	Gold	Push-Pull	2	0.1 in	2.54 mm	2.03 mm	0.08 in	Circular	Pass Through Receptacle	200 µin	5.08 µm	UL94 V-0	Through Hole	Black	Female Socket	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		Solder	Tin	Beryllium Copper	0.13 in	3.3 mm	All	2.54 mm	0.1 in		16
Mill-Max Manufacturing Corp. 835-43-006-10-001000	-55 °C	125 °C	Gold	Push-Pull	2	0.1 in	2.54 mm	2.03 mm	0.08 in	Circular	Pass Through Receptacle	200 µin	5.08 µm	UL94 V-0	Through Hole	Black	Female Socket	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	6	Solder	Tin	Beryllium Copper	0.13 in	3.3 mm	All	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 835-43-032-10-001000	-55 °C	125 °C	Gold	Push-Pull	2	0.1 in	2.54 mm	2.03 mm	0.08 in	Circular	Pass Through Receptacle	200 µin	5.08 µm	UL94 V-0	Through Hole	Black	Female Socket	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		Solder	Tin	Beryllium Copper	0.13 in	3.3 mm	All	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.12
		10	$ 1.93
		100	$ 1.70
		500	$ 1.50
	Digi-Reel®	1	$ 2.12
		10	$ 1.93
		100	$ 1.70
		500	$ 1.50
	Tape & Reel (TR)	1450	$ 1.50

Description

General part information

835-43 Series

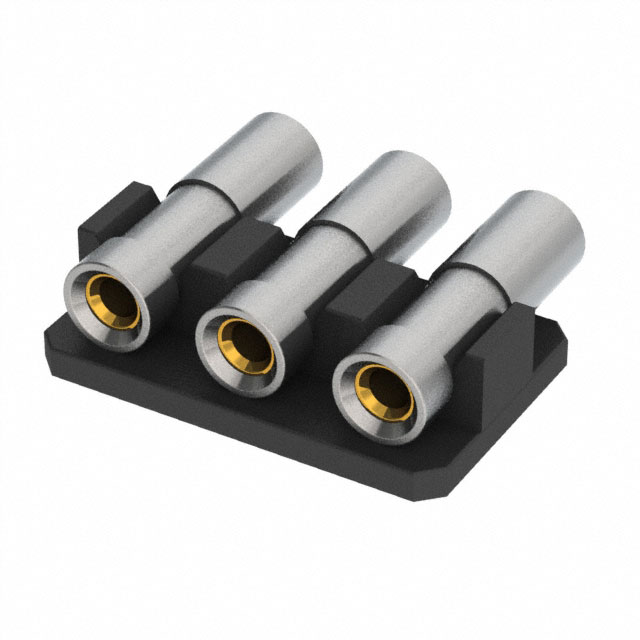

3 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

No documents available
