WAVE-29-127

Active

Wakefield-Vette

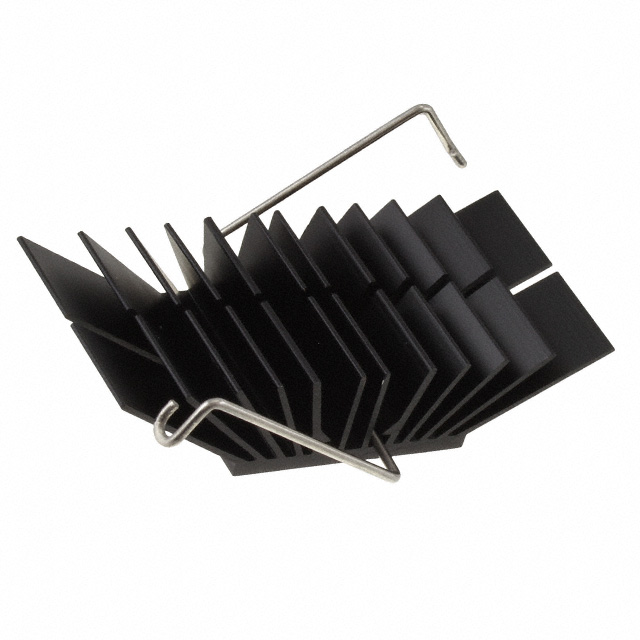

ANCHOR HEATSINK 29X29X12.7MM

Search across all available documentation for this part.

Active

Wakefield-Vette

ANCHOR HEATSINK 29X29X12.7MM

Technical Specifications

Parameters and characteristics for this part

Specification	WAVE-29-127

Attachment Method	Clip
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length [x]	29 mm
Length [x]	1.142 in
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	4.08 °C/W, 200 LFM
Type	Board Level
Width [x]	29 mm
Width [x]	1.142 in

Part	Attachment Method	Shape	Fin Height [z]	Fin Height [z]	Type	Width [x]	Width [x]	Material Finish	Length [x]	Length [x]	Package Cooled	Material	Thermal Resistance @ Forced Air Flow
Wakefield-Vette WAVE-29-127	Clip	Angled Fins Square	12.7 mm	0.5 in	Board Level	29 mm	1.142 in	Black Anodized	29 mm	1.142 in	BGA	Aluminum Alloy	4.08 °C/W 200 LFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum Alloy Board Level
