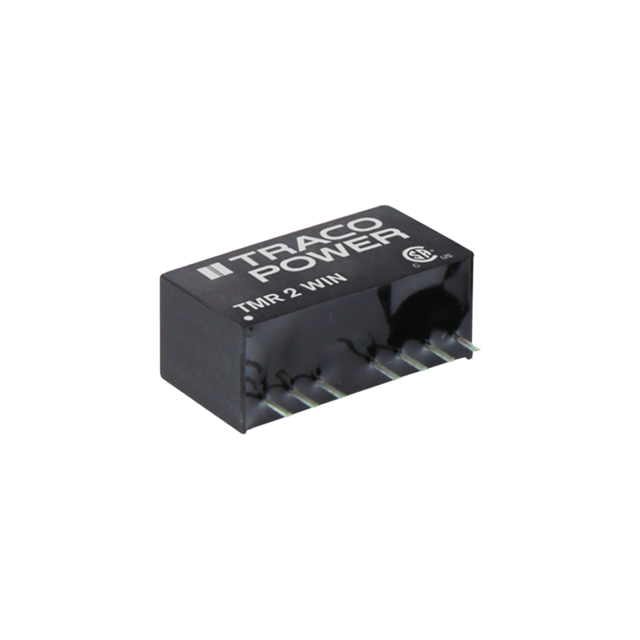

TMR 2-1213WIN

Active

Traco Power

DC DC CONVERTER 15V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMR 2-1213WIN

Active

Traco Power

DC DC CONVERTER 15V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMR 2-1213WIN

Applications	ITE (Commercial)
Current - Output (Max) [Max]	134 mA
Features	Remote On/Off, OCP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SIP Module
Package / Case	7 Leads
Power (Watts)	2 W
Size / Dimension [x]	0.86 in, 21.8 mm
Size / Dimension [y]	0.37 in, 9.3 mm
Size / Dimension [z]	11.2 mm, 0.44 in
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

TMR 2 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Mounting Type	Package / Case	Voltage - Input (Max) [Max]	Applications	Number of Outputs	Voltage - Output 1	Voltage - Isolation	Current - Output (Max) [Max]	Type	Power (Watts)	Voltage - Input (Min) [Min]	Efficiency	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Traco Power TMR 2-0515WISM	-40 °C	80 ¯C	8.7 mm 14.9 mm 19 mm	0.59 in	0.75 in	0.34 in	Remote On/Off SCP	Surface Mount	14-SMD Module 7 Leads	12 V	ITE (Commercial)	1	24 V	1.5 kV	83 mA	Isolated Module	2 W	4.5 V	84 %
Traco Power TMR 2-1210WIN	-40 °C	90 °C					OCP Remote On/Off SCP	Through Hole	8-SIP Module	18 V	ITE (Commercial)	1	3.3 V	1.5 kV	500 mA	Isolated Module	1.7 W	4.5 V	75 %	7 Leads	0.44 in 11.2 mm	0.86 in 21.8 mm	0.37 in 9.3 mm
Traco Power TMR 2-2412WIN	-40 °C	90 °C		0.44 in	0.86 in	0.37 in	OCP Remote On/Off SCP	Through Hole	8-SIP Module	36 V	ITE (Commercial)	1	12 V	1.5 kV	167 mA	Isolated Module	2 W	9 V		7 Leads		21.8 mm		9.3 mm	11.2 mm
Traco Power TMR 2-0512WISM	-40 °C	80 ¯C	8.7 mm 14.9 mm 19 mm	0.59 in	0.75 in	0.34 in	Remote On/Off SCP	Surface Mount	14-SMD Module 7 Leads	12 V	ITE (Commercial)	1	12 V	1.5 kV	167 mA	Isolated Module	2 W	4.5 V	84 %
Traco Power TMR 2-2411E	-40 °C	85 °C					Remote On/Off SCP	Through Hole	8-SIP Module	36 V	ITE (Commercial)	1	5 V	1000 V	400 mA	Isolated Module	2 W	18 V	77 %	7 Leads	0.44 in 11.2 mm	0.86 in 21.8 mm	0.37 in 9.3 mm
Traco Power TMR 2-4812WI	-40 °C	85 °C		0.37 "	1.02 in	0.49 in	Remote On/Off SCP	Through Hole	9-SIP Module 7 Leads	75 V	ITE (Commercial)	1	12 V	1.5 kV		Isolated Module	2 W	18 V	78 %			26 mm		12.5 mm	9.3 mm	165 mA
Traco Power TMR 2-2412E	-40 °C	85 °C					Remote On/Off SCP	Through Hole	8-SIP Module	36 V	ITE (Commercial)	1	12 V	1000 V	167 mA	Isolated Module	2 W	18 V	81 %	7 Leads	0.44 in 11.2 mm	0.86 in 21.8 mm	0.37 in 9.3 mm
Traco Power TMR 2-2423WISM	-40 °C	80 ¯C	8.7 mm 14.9 mm 19 mm	0.59 in	0.75 in	0.34 in	Remote On/Off SCP	Surface Mount	14-SMD Module 7 Leads	36 V	ITE (Commercial)	2	15 V	1.5 kV		Isolated Module	2 W	9 V	83 %							67 mA	67 mA	-15 V
Traco Power TMR 2-1213WIN	-40 °C	90 °C					OCP Remote On/Off SCP	Through Hole	8-SIP Module	18 V	ITE (Commercial)	1	15 V	1.5 kV	134 mA	Isolated Module	2 W	4.5 V		7 Leads	0.44 in 11.2 mm	0.86 in 21.8 mm	0.37 in 9.3 mm
Traco Power TMR 2-4813WI	-40 °C	85 °C		0.37 "	1.02 in	0.49 in	Remote On/Off SCP	Through Hole	9-SIP Module 7 Leads	75 V	ITE (Commercial)	1	15 V	1.5 kV	135 mA	Isolated Module	2 W	18 V	78 %			26 mm		12.5 mm	9.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.10
		10	$ 14.61
		25	$ 14.13
		50	$ 13.77
		100	$ 13.43
		250	$ 12.98
		500	$ 12.66

Description

General part information

TMR 2 Series

Isolated Module DC DC Converter 1 Output 15V 134mA 4.5V - 18V Input
