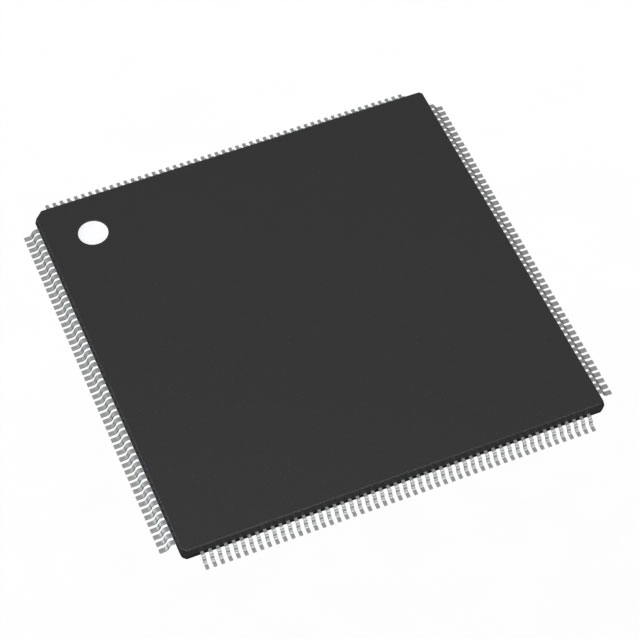

SPC5645SF1VLTR

Active

Freescale Semiconductor - NXP

IC MCU 32BIT 2MB FLASH 208TQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPC5645SF1VLTR

Active

Freescale Semiconductor - NXP

IC MCU 32BIT 2MB FLASH 208TQFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPC5645SF1VLTR

Connectivity	LINbus, SPI, CANbus, SCI, I2C
Core Processor	e200z4d
Core Size	32-Bit Single-Core
Data Converters	10 b, 20
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	208-LQFP
Peripherals	WDT, DMA, PWM, POR
Program Memory Size	2 MB
Program Memory Type	FLASH
RAM Size	1.064 M
Speed	125 MHz
Supplier Device Package	208-TQFP (28x28)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

SPC5645 Series

Part	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Package / Case	Oscillator Type	Data Converters	Mounting Type	Number of I/O	EEPROM Size	Program Memory Type	Program Memory Size	Core Processor	Speed	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Core Size	Connectivity	Data Converters [custom]	Data Converters [custom]	Core Size [custom]	EEPROM Size	Speed	Data Converters [custom]	Data Converters [custom]	Data Converters
Freescale Semiconductor - NXP SPC5645BF0VLT1R	DMA POR PWM WDT	105 °C	-40 °C	160 K	208-LQFP	Internal	10x12b 33x10b	Surface Mount	177	64 K	FLASH	2 MB	e200z4d	120 MHz	208-TQFP (28x28)	5.5 V	3 V	32-Bit Single-Core	CANbus I2C LINbus SCI SPI
Freescale Semiconductor - NXP SPC5645BAVLT1R	DMA POR PWM WDT	105 °C	-40 °C	160 K	208-LQFP	Internal	10x12b 33x10b	Surface Mount	177	64 K	FLASH	2 MB	e200z4d	120 MHz	208-TQFP (28x28)	5.5 V	3 V	32-Bit Single-Core	CANbus I2C LINbus SCI SPI
Freescale Semiconductor - NXP SPC5645SF1VLU	DMA POR PWM WDT	105 °C	-40 °C	1.064 M	176-LQFP	Internal		Surface Mount	128		FLASH	2 MB	e200z4d	125 MHz	176-LQFP (24x24)	5.5 V	3 V	32-Bit Single-Core	CANbus I2C LINbus SCI SPI	10	16
Freescale Semiconductor - NXP SPC5645CCF0VLU8R	DMA POR PWM WDT	105 °C	-40 °C	256 K	176-LQFP	Internal	27x10b 5x12b	Surface Mount	147		FLASH	2 MB	e200z0h e200z4d	80 MHz	176-LQFP (24x24)	5 V	3 V		CANbus Ethernet I2C LINbus SCI SPI			32-Bit Dual-Core	4K x 16	120 MHz
Freescale Semiconductor - NXP SPC5645BF0MLU1	DMA POR PWM WDT	125 °C	-40 °C	160 K	176-LQFP	External Internal	27x10b 5x12b	Surface Mount	147	64 K	FLASH	2 MB	e200z4d	120 MHz	176-LQFP (24x24)	5.5 V	3 V	32-Bit Single-Core	CANbus I2C LINbus SCI SPI				4K x 16		24x12b SAR	46x10b
Freescale Semiconductor - NXP SPC5645BCK0VLU1R	DMA POR PWM WDT	105 °C	-40 °C	160 K	176-LQFP	Internal	27x10b 5x12b	Surface Mount	147	64 K	FLASH	2 MB	e200z4d	120 MHz	176-LQFP (24x24)	5.5 V	3 V	32-Bit Single-Core	CANbus I2C LINbus SCI SPI
Freescale Semiconductor - NXP SPC5645SF1VLTR	DMA POR PWM WDT	105 °C	-40 °C	1.064 M	208-LQFP	Internal		Surface Mount			FLASH	2 MB	e200z4d	125 MHz	208-TQFP (28x28)	5.5 V	3 V	32-Bit Single-Core	CANbus I2C LINbus SCI SPI								10 b 20
Freescale Semiconductor - NXP SPC5645BF0MMJ1	DMA POR PWM WDT	125 °C	-40 °C	160 K	256-LBGA	Internal	10x12b 33x10b	Surface Mount	199	64 K	FLASH	2 MB	e200z4d	120 MHz	256-MAPBGA (17x17)	5.5 V	3 V	32-Bit Single-Core	CANbus I2C LINbus SCI SPI
Freescale Semiconductor - NXP SPC5645CCF0VLU8	DMA POR PWM WDT	105 °C	-40 °C	256 K	176-LQFP	Internal	27x10b 5x12b	Surface Mount	147		FLASH	2 MB	e200z0h e200z4d	80 MHz	176-LQFP (24x24)	5 V	3 V		CANbus Ethernet I2C LINbus SCI SPI			32-Bit Dual-Core	4K x 16	120 MHz
Freescale Semiconductor - NXP SPC5645SF1VVU	DMA POR PWM WDT	105 °C	-40 °C	1.064 M	416-BBGA	Internal		Surface Mount	177		FLASH	2 MB	e200z4d	125 MHz	416-PBGA (27x27)	5.5 V	3 V	32-Bit Single-Core	CANbus I2C LINbus SCI SPI								10 b 20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	180	$ 34.92

Description

General part information

SPC5645 Series

e200z4d MPC56xxS Qorivva Microcontroller IC 32-Bit Single-Core 125MHz 2MB (2M x 8) FLASH 208-TQFP (28x28)
