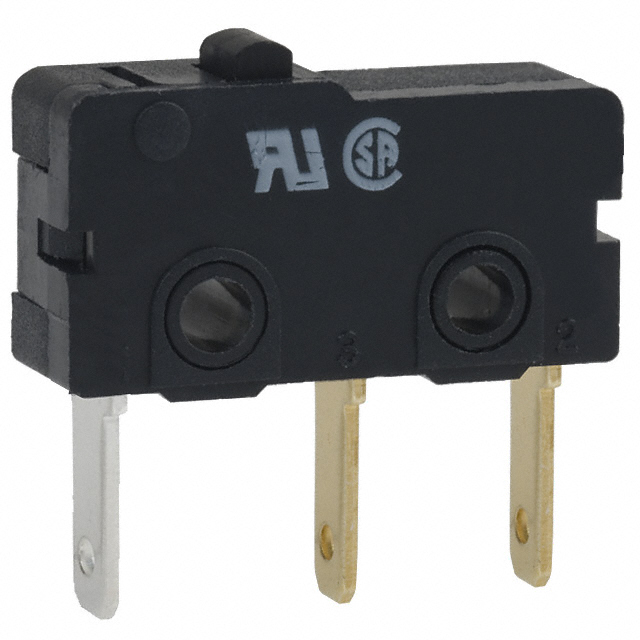

ZV10B70A01
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDT 100MA 125V
Deep-Dive with AI
Search across all available documentation for this part.
ZV10B70A01
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDT 100MA 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZV10B70A01 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.008 in |
| Differential Travel | 0.2 mm |
| Electrical Life | 1000000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 65 gf |
| Operating Position | 0.449 in |
| Operating Position | 11.4 mm |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.4 mm |
| Overtravel | 0.015 " |
| Pretravel | 0.043 " |
| Pretravel | 1.1 mm |
| Release Force | 14 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ZV10B Series
Switch SPDT Chassis Mount
