Technical Specifications
Parameters and characteristics for this part
| Specification | NHSA5025RJ |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] [z] | 17 mm |
| Height - Seated (Max) [Max] [z] | 0.669 in |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Power (Watts) | 50 W |
| Resistance | 25 Ohms |
| Size / Dimension [x] | 51 mm |
| Size / Dimension [x] | 2.008 in |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [y] | 1.181 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.81 | |
| 10 | $ 6.96 | |||
| 25 | $ 6.83 | |||
| 40 | $ 6.02 | |||
| 100 | $ 4.95 | |||
| 300 | $ 4.72 | |||
| 500 | $ 4.39 | |||
| 1000 | $ 4.07 | |||
Description
General part information
NHSA50 Series

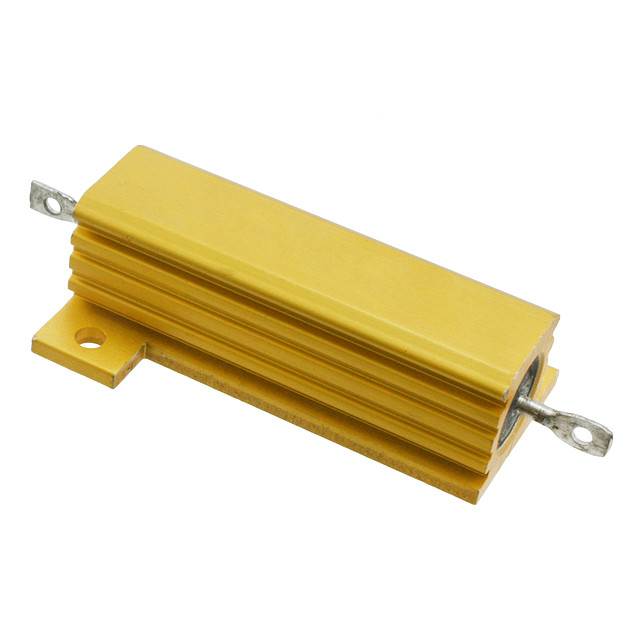

25 Ohms ±5% 50W Wirewound Chassis Mount Resistor
