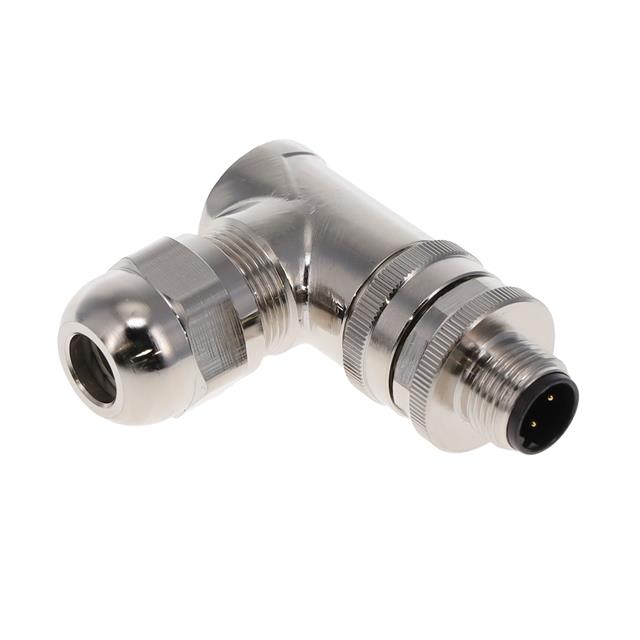

T4113411041-000

Active

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 4POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T4113411041-000

Active

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 4POS GOLD SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T4113411041-000

Applications	Industrial
Backshell Material, Plating	Nickel, Brass
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Brass
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Screw
Voltage Rating	250 VDC

T41134 Series

Part	Connector Type	Insert Material	Contact Finish - Mating	Features	Orientation	Termination	Mounting Type	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Color	Applications	Shell Finish	Number of Positions	Shell Size - Insert	Voltage Rating	Shell Material	Backshell Material, Plating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]
TE Connectivity Raychem Cable Protection T4113412042-000	Male Pins Receptacle	Nylon Polyamide (PA)	Silver	Backshell	B	Screw	Free Hanging (In-Line) Right Angle	Metal	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	2.03 µm	80 µin	Brass	Silver	Industrial	Nickel	4	M12-4	250 VDC	Brass	Brass Nickel	8 mm	6 mm	0.315 in	0.236 in	4 A
TE Connectivity Raychem Cable Protection T4113412052-000	Male Pins Receptacle	Nylon Polyamide (PA)	Silver	Backshell	B	Screw	Free Hanging (In-Line) Right Angle	Metal	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	2.03 µm	80 µin	Brass	Silver	Industrial	Nickel		M12-5	60 VDC	Brass	Brass Nickel	8 mm	6 mm	0.315 in	0.236 in	4 A
TE Connectivity Raychem Cable Protection T4113401042-000	Male Pins Receptacle	Nylon Polyamide (PA)	Silver	Backshell	B	Screw	Free Hanging (In-Line) Right Angle	Metal	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Unshielded	2.03 µm	80 µin	Brass	Black Silver	Industrial	Nickel	4	M12-4	250 VDC	Brass	Glass Filled Polybutylene Terephthalate (PBT)					4 A	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4113411052-000	Male Pins Receptacle	Nylon Polyamide (PA)	Silver	Backshell	B	Screw	Free Hanging (In-Line) Right Angle	Metal	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	2.03 µm	80 µin	Brass	Silver	Industrial	Nickel		M12-5	60 VDC	Brass	Brass Nickel					4 A	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4113411041-000	Male Pins Receptacle	Nylon Polyamide (PA)	Gold	Backshell	B	Screw	Free Hanging (In-Line) Right Angle	Metal	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	0.076 µm	3 µin	Brass	Silver	Industrial	Nickel	4	M12-4	250 VDC	Brass	Brass Nickel					4 A	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4113401032-000	Male Pins Receptacle	Nylon Polyamide (PA)	Silver	Backshell	B	Screw	Free Hanging (In-Line) Right Angle	Metal	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Unshielded	2.03 µm	80 µin	Brass	Black Silver	Industrial	Nickel		M12-3	250 VDC	Brass	Glass Filled Polybutylene Terephthalate (PBT)					4 A	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4113411042-000	Male Pins Receptacle	Nylon Polyamide (PA)	Silver	Backshell	B	Screw	Free Hanging (In-Line) Right Angle	Metal	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	2.03 µm	80 µin	Brass	Silver	Industrial	Nickel	4	M12-4	250 VDC	Brass	Brass Nickel					4 A	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4113412051-000	Male Pins Receptacle	Nylon Polyamide (PA)	Gold	Backshell	B	Screw	Free Hanging (In-Line) Right Angle	Metal	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	0.076 µm	3 µin	Zinc Alloy	Silver	Industrial	Nickel		M12-5	60 VDC	Brass	Brass Nickel	8 mm	6 mm	0.315 in	0.236 in	4 A
TE Connectivity Raychem Cable Protection T4113402051-000	Male Pins Receptacle	Nylon Polyamide (PA)	Gold	Backshell	B	Screw	Free Hanging (In-Line) Right Angle	Metal	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Unshielded	0.076 µm	3 µin	Zinc Alloy	Black Silver	Industrial	Nickel		M12-5	60 VDC	Brass	Glass Filled Polybutylene Terephthalate (PBT)	8 mm	6 mm	0.315 in	0.236 in	4 A
TE Connectivity Raychem Cable Protection T4113401041-000	Male Pins Receptacle	Nylon Polyamide (PA)	Gold	Backshell	B	Screw	Free Hanging (In-Line) Right Angle	Metal	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Unshielded	0.076 µm	3 µin	Brass	Black Silver	Industrial	Nickel	4	M12-4	250 VDC	Brass	Glass Filled Polybutylene Terephthalate (PBT)					4 A	4 mm 6 mm	0.157 in 0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.21
		10	$ 6.52
		25	$ 6.35
		50	$ 6.11
		100	$ 6.08

Description

General part information

T41134 Series

4 Position Circular Connector Receptacle, Male Pins Screw
