11-1"X72YDS

Active

3M (TC)

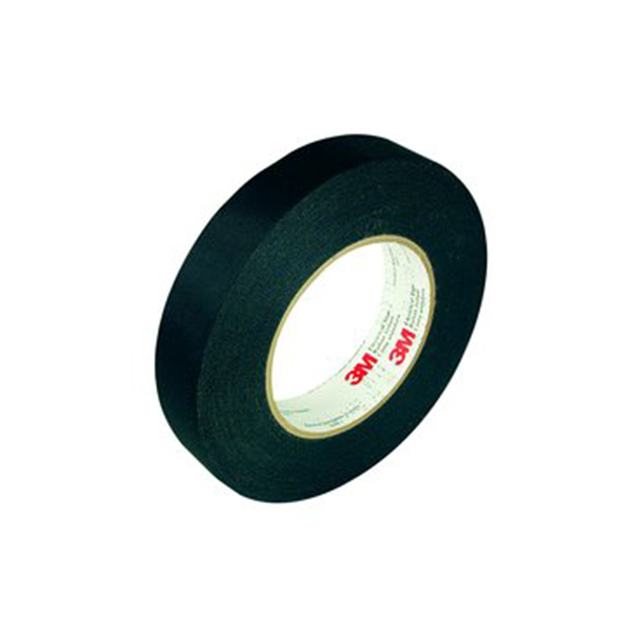

TAPE ELECTRICAL BLACK 1"X72YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ELECTRICAL BLACK 1"X72YDS

Technical Specifications

Parameters and characteristics for this part

Specification	11-1"X72YDS

Adhesive	Rubber
Backing, Carrier	Acetate Cloth
Color	Black
Length	66 m
Length	216 ft
Length	72 yd
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical
Temperature Range [Max]	221 °F
Temperature Range [Max]	105 °C
Temperature Range [Min]	0 °C
Temperature Range [Min]	0 °C
Thickness - Adhesive	0.0023 "
Thickness - Adhesive	2.3 mils
Thickness - Adhesive	0.058 mm
Thickness - Backing, Carrier	0.006 in
Thickness - Backing, Carrier	6 mils
Thickness - Backing, Carrier	0.152 mm
Usage	High Temperature, Insulating
Width [x]	25.4 mm
Width [x]	1 in

Part	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Shelf Life	Shelf Life Start	Width [x]	Width [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Usage	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Length	Length	Length	Color	Backing, Carrier	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier
3M (TC) 11-1"X72YDS	221 °F	0 °C	105 °C	0 °C	60 Months	Date of Manufacture	25.4 mm	1 in	0.0023 "	2.3 mils	0.058 mm	Rubber	High Temperature Insulating	27 °C 80 °F	10 °C	66 m	216 ft	72 yd	Black	Acetate Cloth	Electrical	0.006 in	6 mils	0.152 mm
