Q-040520003108i

Active

Amphenol Custom Cable

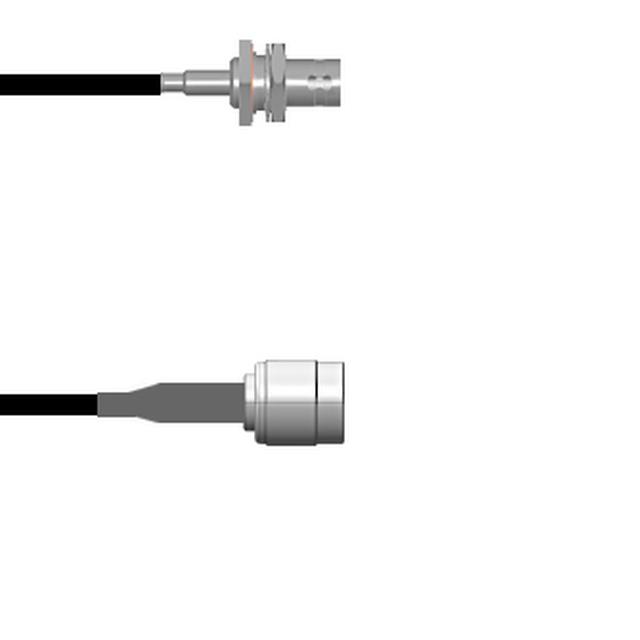

CBL ASSY BNC-TNC JACK-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-040520003108i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-040520003108i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-040520 Series

Part	1st Contact Gender	Cable Type	2nd Contact Gender	Color	Overall Impedance	Length	Length	Style	2nd Connector Mounting Type	2nd Connector	1st Connector Mounting Feature	Frequency - Max [Max]	1st Connector	1st Connector Mounting Type	Features	Length
Amphenol Custom Cable Q-040520005003i	Female	RG-316	Male	Copper	50 Ohms	3 in	76.2 mm	BNC to TNC	Free Hanging (In-Line)	TNC Plug	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-040520005024i	Female	RG-316	Male	Copper	50 Ohms	24 "	609.6 mm	BNC to TNC	Free Hanging (In-Line)	TNC Plug	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-040520005012i	Female	RG-316	Male	Copper	50 Ohms	12 "	304.8 mm	BNC to TNC	Free Hanging (In-Line)	TNC Plug	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-040520005072i	Female	RG-316	Male	Copper	50 Ohms	72 in	1.8 m	BNC to TNC	Free Hanging (In-Line)	TNC Plug	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	Shielded	6 ft
Amphenol Custom Cable Q-0405200032.5M	Female	RG-174	Male	Black	50 Ohms	98.4 in	2.5 m	BNC to TNC	Free Hanging (In-Line)	TNC Plug	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	Shielded	8.2 '
Amphenol Custom Cable Q-040520005108i	Female	RG-316	Male	Copper	50 Ohms	108 in	2.7 m	BNC to TNC	Free Hanging (In-Line)	TNC Plug	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	Shielded	9 ft
Amphenol Custom Cable Q-040520005084i	Female	RG-316	Male	Copper	50 Ohms	84 in	2.1 m	BNC to TNC	Free Hanging (In-Line)	TNC Plug	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	Shielded	7 ft
Amphenol Custom Cable Q-040520003108i	Female	RG-174	Male	Black	50 Ohms	108 in	2.7 m	BNC to TNC	Free Hanging (In-Line)	TNC Plug	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	Shielded	9 ft
Amphenol Custom Cable Q-040520005006i	Female	RG-316	Male	Copper	50 Ohms	6 in	152.4 mm	BNC to TNC	Free Hanging (In-Line)	TNC Plug	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-040520003.75M	Female	RG-174	Male	Black	50 Ohms	29.53 "	750 mm	BNC to TNC	Free Hanging (In-Line)	TNC Plug	Bulkhead - Front Side Nut	4 GHz	BNC Jack	Panel Mount	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 55.66
		25	$ 54.57
		50	$ 53.47
		100	$ 52.38
		250	$ 51.29

Description

General part information

Q-040520 Series

Cable Assembly Coaxial BNC to TNC RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
