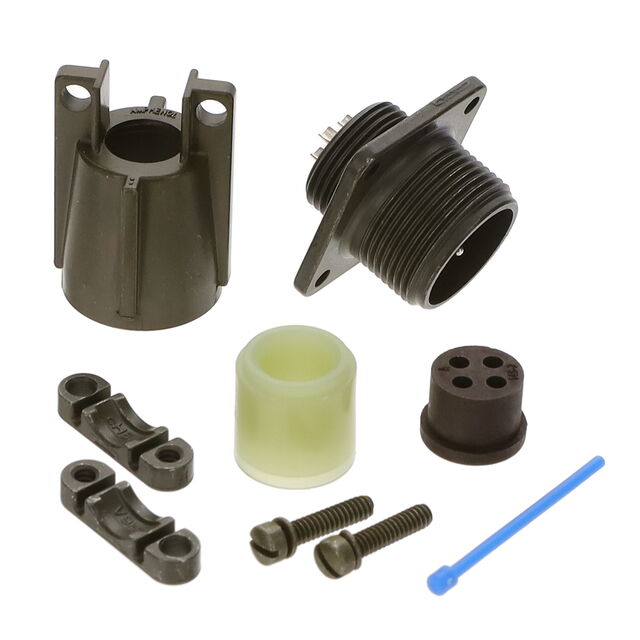

MS3100E14S-2P

Active

Amphenol Industrial Operations

CONN RCPT MALE 4P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3100E14S-2P

Active

Amphenol Industrial Operations

CONN RCPT MALE 4P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3100E14S-2P

Applications	Military, Marine
Cable Opening [custom]	10.3 mm
Cable Opening [custom]	0.406 in
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Cable Clamp
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-2
Shielding	Unshielded

MS3100E14 Series

Part	Shell Size - Insert	Current Rating (Amps)	Voltage Rating	Cable Opening [diameter]	Cable Opening [diameter]	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Ingress Protection	Color	Features	Mounting Feature	Orientation	Applications	Shielding	Contact Material	Qualification	Shell Material	Contact Finish - Mating	Shell Finish	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Number of Positions
Amphenol Industrial Operations MS3100E14-3S
Amphenol Industrial Operations MS3100E14S-5P	14S-5	13 A	200 VAC 250 VDC	10.31 mm	0.406 in	Metal	-55 °C	125 °C	Neoprene	Environment Resistant	Olive Drab	Cable Clamp	Flange	N	Marine Military	Unshielded	Copper Alloy	MIL-5015	Aluminum Alloy	Silver	Olive Drab Chromate over Cadmium	Male Pins Receptacle
Amphenol Industrial Operations MS3100E14S-7S
Amphenol Industrial Operations MS3100E14-3P
Amphenol Industrial Operations MS3100E14S-9P
Amphenol Industrial Operations MS3100E14S-13S
Amphenol Industrial Operations MS3100E14S-10P
Amphenol Industrial Operations MS3100E14S-10S
Amphenol Industrial Operations MS3100E14S-7P	14S-7	13 A	500 VAC 700 VDC	10.31 mm	0.406 in	Metal	-55 °C	125 °C	Neoprene	Environment Resistant	Olive Drab	Cable Clamp	Flange	N	Marine Military	Unshielded	Copper Alloy	MIL-5015	Aluminum Alloy	Silver	Olive Drab Chromate over Cadmium	Male Pins Receptacle
Amphenol Industrial Operations MS3100E14S-2P	14S-2					Metal	-55 °C	125 °C	Neoprene	Environment Resistant	Olive Drab	Cable Clamp	Flange	N	Marine Military	Unshielded	Copper Alloy	MIL-5015	Aluminum Alloy	Silver	Olive Drab Chromate over Cadmium	Male Pins Receptacle	10.3 mm	0.406 in	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.90
		10	$ 24.56
		25	$ 23.02
		50	$ 21.93
		100	$ 20.88
		250	$ 19.57
		500	$ 18.73

Description

General part information

MS3100E14 Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup
