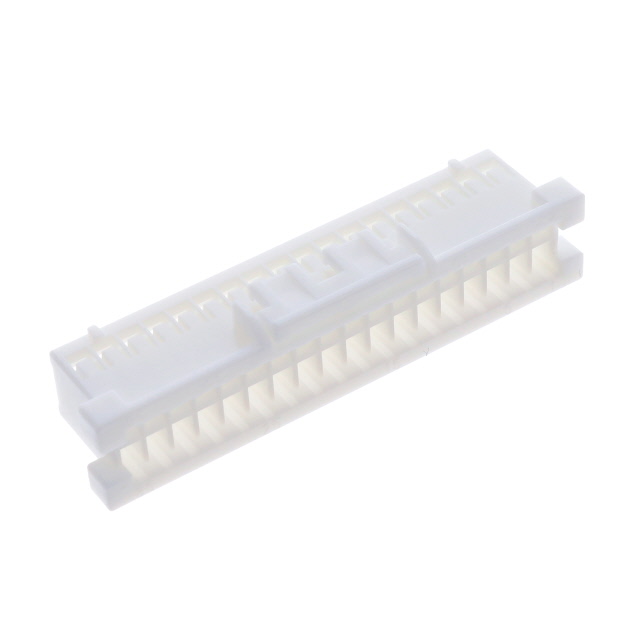

XADRP-36V

Active

JST Sales America Inc.

CONN RCPT HSG 36POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart

XADRP-36V

Active

JST Sales America Inc.

CONN RCPT HSG 36POS 2.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XADRP-36V

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	36
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Row Spacing	0.098 in
Row Spacing	2.5 mm

XADR Series

Part	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Note	Contact Termination	Color	Row Spacing	Row Spacing	Fastening Type	Insulation Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
JST Sales America Inc. XADRP-30V	Receptacle	30	0.098 in	2.5 mm	2	Contacts Not Included	Crimp	Natural	0.098 in	2.5 mm	Latch Lock	Polyamide (PA66) Nylon 6/6	Female Socket	-25 °C	85 °C	Free Hanging (In-Line)
JST Sales America Inc. XADRP-32V	Receptacle		0.098 in	2.5 mm	2	Contacts Not Included	Crimp	Natural	0.098 in	2.5 mm	Latch Lock	Polyamide (PA66) Nylon 6/6	Female Socket	-25 °C	85 °C	Free Hanging (In-Line)
JST Sales America Inc. XADRP-36V	Receptacle	36	0.098 in	2.5 mm	2	Contacts Not Included	Crimp	Natural	0.098 in	2.5 mm	Latch Lock	Polyamide (PA66) Nylon 6/6	Female Socket	-25 °C	85 °C	Free Hanging (In-Line)
JST Sales America Inc. XADR-36V	Receptacle	36	0.098 in	2.5 mm	2	Contacts Not Included	Crimp	Natural	0.098 in	2.5 mm	Latch Lock	Polyamide (PA66) Nylon 6/6	Female Socket	-25 °C	85 °C	Panel Mount Snap-In
JST Sales America Inc. XADRP-20V	Receptacle	20	0.098 in	2.5 mm	2	Contacts Not Included	Crimp	Natural	0.098 in	2.5 mm	Latch Lock	Polyamide (PA66) Nylon 6/6	Female Socket	-25 °C	85 °C	Free Hanging (In-Line)
JST Sales America Inc. XADR-32V	Receptacle		0.098 in	2.5 mm	2	Contacts Not Included	Crimp	Natural	0.098 in	2.5 mm	Latch Lock	Polyamide (PA66) Nylon 6/6	Female Socket	-25 °C	85 °C	Panel Mount Snap-In
JST Sales America Inc. XADRP-34V	Receptacle	34	0.098 in	2.5 mm	2	Contacts Not Included	Crimp	Natural	0.098 in	2.5 mm	Latch Lock	Polyamide (PA66) Nylon 6/6	Female Socket	-25 °C	85 °C	Free Hanging (In-Line)
JST Sales America Inc. XADRP-18V	Receptacle	18	0.098 in	2.5 mm	2	Contacts Not Included	Crimp	Natural	0.098 in	2.5 mm	Latch Lock	Polyamide (PA66) Nylon 6/6	Female Socket	-25 °C	85 °C	Free Hanging (In-Line)
JST Sales America Inc. XADRP-22V	Receptacle	22 positions	0.098 in	2.5 mm	2	Contacts Not Included	Crimp	Natural	0.098 in	2.5 mm	Latch Lock	Polyamide (PA66) Nylon 6/6	Female Socket	-25 °C	85 °C	Free Hanging (In-Line)
JST Sales America Inc. XADR-30V	Receptacle	30	0.098 in	2.5 mm	2	Contacts Not Included	Crimp	Natural	0.098 in	2.5 mm	Latch Lock	Polyamide (PA66) Nylon 6/6	Female Socket	-25 °C	85 °C	Panel Mount Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.48
		10	$ 0.36
		25	$ 0.33
		50	$ 0.30
		100	$ 0.28
		250	$ 0.25
		500	$ 0.23
		1000	$ 0.22
		2500	$ 0.20

Description

General part information

XADR Series

36 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
