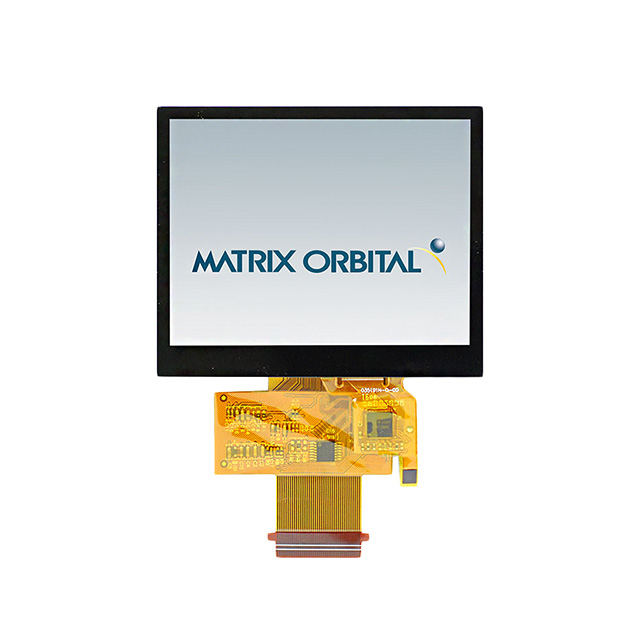

MOP-TFT320240-35A-BLM-TPC

Obsolete

Matrix Orbital

3.5" LCD TFT DISPLAY CAPACITIVE

Search across all available documentation for this part.

Obsolete

Matrix Orbital

3.5" LCD TFT DISPLAY CAPACITIVE

Technical Specifications

Parameters and characteristics for this part

Part	Backlight	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Touchscreen	Viewing Area [custom]	Viewing Area [custom]	Interface	Interface	Dot Pitch [y]	Dot Pitch [x]	Graphics Color	Display Type	Display Mode	Viewing Area [y]	Viewing Area [x]	Viewing Area [z]
Matrix Orbital MOP-TFT320240-35A-BLM-TPC	LED	QVGA	320 pixels	240 pixels	Capacitive	71.08 mm	53.56 mm	Parallel	24 Bit	0.22 mm	0.22 mm	Blue Green Red	TFT - Color	Transmissive
Matrix Orbital MOP-TFT320240-35A-BLM-TPN	LED	QVGA	320 pixels	240 pixels				Parallel	24 Bit	0.22 mm	0.22 mm	Blue Green Red	TFT - Color	Transmissive	52.56 mm	70.08 mm
Matrix Orbital MOP-TFT320240-35A-BLM-TPR	LED	QVGA	320 pixels	240 pixels	Resistive			Parallel	24 Bit	0.22 mm	0.22 mm	Blue Green Red	TFT - Color	Transmissive	54.78 mm	72.28 mm
Matrix Orbital MOP-TFT320240-35G-BLM-TPC	LED		320 pixels	240 pixels	Capacitive			Parallel	24 Bit	0.22 mm	0.22 mm	Blue Green Red	TFT - Color	Transmissive	73.1 mm		55.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 3.5" (88.90mm) 320 x 240 (QVGA)

Technical documentation and resources

No documents available
