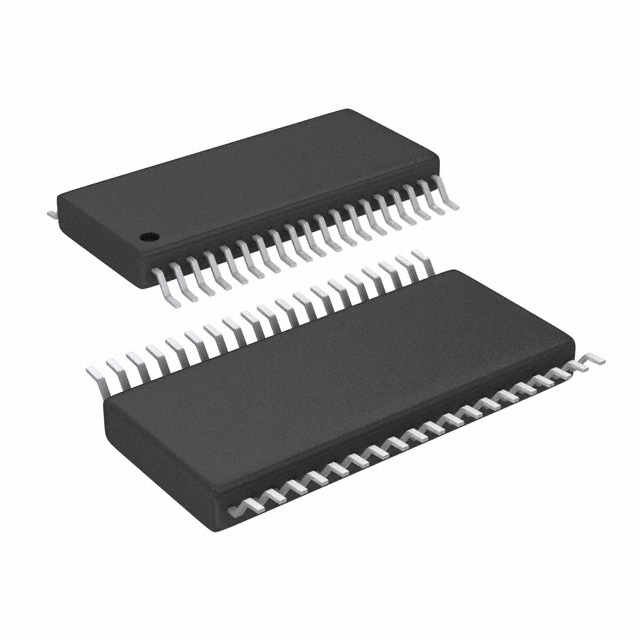

SP2209EEY-L/TR

Active

MaxLinear, Inc.

IC TRANSCEIVER FULL 6/10 38TSSOP

Search across all available documentation for this part.

Active

MaxLinear, Inc.

IC TRANSCEIVER FULL 6/10 38TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	SP2209EEY-L/TR

Duplex	Full
Mounting Type	Surface Mount
Number of Drivers/Receivers [custom]	6
Number of Drivers/Receivers [custom]	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	38-TFSOP
Package / Case [custom]	4.4 mm
Package / Case [custom]	0.173 in
Protocol	RS232
Receiver Hysteresis	250 mV
Supplier Device Package	38-TSSOP
Type	Transceiver
Voltage - Supply [Max]	13.2 V
Voltage - Supply [Min]	10.8 VDC

Part	Receiver Hysteresis	Supplier Device Package	Package / Case [custom]	Package / Case [custom]	Package / Case	Type	Mounting Type	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Duplex	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]
MaxLinear, Inc. SP2209EEY-L/TR	250 mV	38-TSSOP	4.4 mm	0.173 in	38-TFSOP	Transceiver	Surface Mount	6	10	85 °C	-40 °C	Full	RS232	13.2 V	10.8 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6/10 Transceiver Full RS232 38-TSSOP

Technical documentation and resources

No documents available
