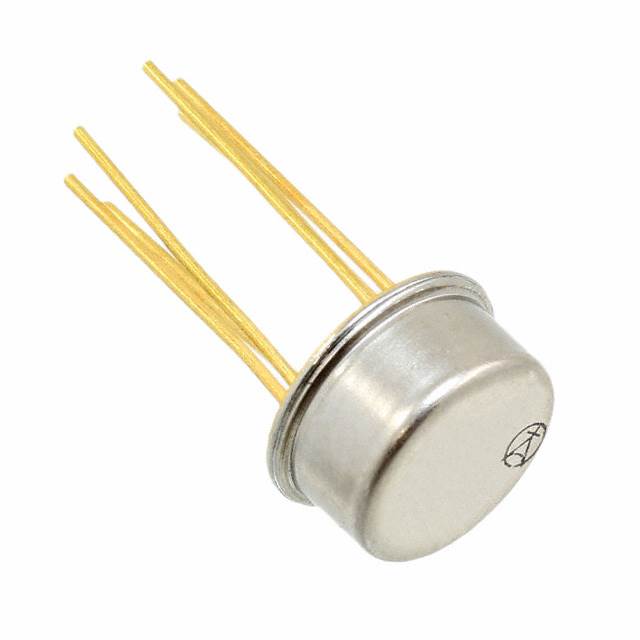

JANTX4N47

Active

TT Electronics/Optek Technology

OPTOISO 1KV TRANS W/BASE TO78-6

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

OPTOISO 1KV TRANS W/BASE TO78-6

Technical Specifications

Parameters and characteristics for this part

Specification	JANTX4N47

Current - DC Forward (If) (Max) [Max]	40 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Min) [Min]	50 %
Input Type	DC
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-78-6 Metal Can
Rise / Fall Time (Typ)	20 µs, 20 µs
Supplier Device Package	TO-78-6
Vce Saturation (Max) [Max]	300 mV
Voltage - Forward (Vf) (Typ)	1.5 V
Voltage - Isolation	1000 V
Voltage - Output (Max) [Max]	40 V

Part	Current Transfer Ratio (Min) [Min]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Isolation	Voltage - Forward (Vf) (Typ)	Number of Channels	Current - DC Forward (If) (Max) [Max]	Input Type	Rise / Fall Time (Typ)	Vce Saturation (Max) [Max]	Current - Output / Channel	Supplier Device Package	Voltage - Output (Max) [Max]	Current Transfer Ratio (Max)
TT Electronics/Optek Technology JANTX4N24A	100 %	TO-78-6 Metal Can	-55 °C	125 °C	Through Hole	1000 V	1.5 V	1	40 mA	DC	20 µs 20 µs	300 mV	50 mA	TO-78-6	40 V
TT Electronics/Optek Technology JANTX4N22A		TO-78-6 Metal Can	-55 °C	125 °C	Through Hole	1000 V	1.5 V	1	40 mA	DC	20 µs 20 µs	300 mV	50 mA	TO-78-6	40 V
TT Electronics/Optek Technology JANTX4N47	50 %	TO-78-6 Metal Can	-55 °C	125 °C	Through Hole	1000 V	1.5 V	1	40 mA	DC	20 µs 20 µs	300 mV	50 mA	TO-78-6	40 V
TT Electronics/Optek Technology JANTX4N49	200 %	TO-78-6 Metal Can	-55 °C	125 °C	Through Hole	1000 V	1.5 V	1	40 mA	DC	20 µs 20 µs	300 mV	50 mA	TO-78-6	40 V	1000 %
TT Electronics/Optek Technology JANTX4N49A	200 %	TO-78-6 Metal Can	-55 °C	125 °C	Through Hole	1000 V	1.5 V	1	40 mA	DC	20 µs 20 µs	300 mV	50 mA	TO-78-6	40 V	1000 %
TT Electronics/Optek Technology JANTX4N22		TO-78-6 Metal Can	-55 °C	125 °C	Through Hole	1000 V	1.5 V	1	40 mA	DC	20 µs 20 µs	300 mV	50 mA	TO-78-6	40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 29.70

General part information

Optoisolator Transistor with Base Output 1000VDC 1 Channel TO-78-6
