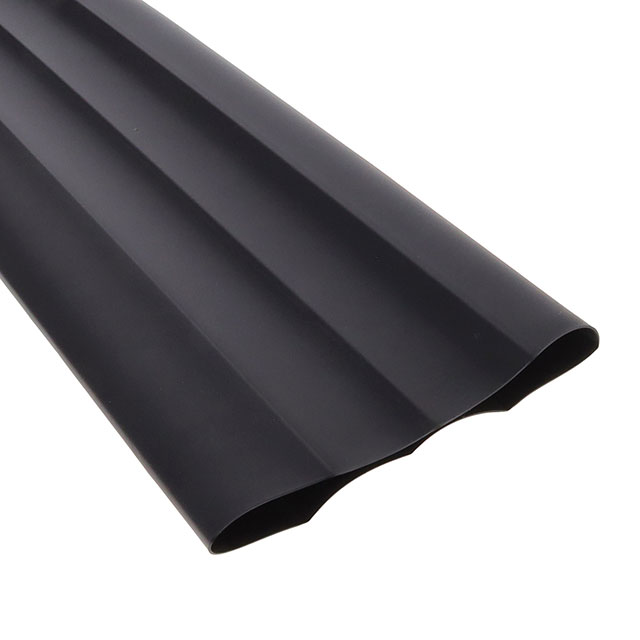

B2(4X) 3 BLACK 3FT

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 3" BLACK 1=1PC

Search across all available documentation for this part.

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 3" BLACK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	B2(4X) 3 BLACK 3FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	19.05 mm
Inner Diameter - Recovered [diameter]	0.75 "
Inner Diameter - Supplied [diameter]	3 in
Inner Diameter - Supplied [diameter]	76.2 mm
Length [x]	3 ft
Length [x]	914.4 mm
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	1.5 mm
Recovered Wall Thickness	0.059 in
Shrink Temperature	90 °C
Shrinkage Ratio	4 to 1
Type	Tubing, Flexible

Part	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Type	Recovered Wall Thickness	Recovered Wall Thickness	Material	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Shrinkage Ratio	Color
Sumitomo Electric Interconnect Products, Inc. B2(4X) 2 BLACK 4FT	135 °C	-55 °C	50.8 mm	2 in	1.22 m	4 ft	Tubing Flexible	1.5 mm	0.059 in	Polyolefin (PO)	90 °C	0.5 in	12.7 mm	Flame Retardant	4 to 1	Black
Sumitomo Electric Interconnect Products, Inc. B2(4X) 1-1/2 BLACK 4FT	135 °C	-55 °C	38.1 mm	1.5 in	1.22 m	4 ft	Tubing Flexible	1.5 mm	0.059 in	Polyolefin (PO)	90 °C	0.375 in	9.53 mm	Flame Retardant	4 to 1	Black
Sumitomo Electric Interconnect Products, Inc. B2(4X) 3 BLACK 3FT	135 °C	-55 °C	76.2 mm	3 in	914.4 mm	3 ft	Tubing Flexible	1.5 mm	0.059 in	Polyolefin (PO)	90 °C	0.75 "	19.05 mm	Flame Retardant	4 to 1	Black
Sumitomo Electric Interconnect Products, Inc. B2(4X) 1 BLACK 4FT	135 °C	-55 °C	25.4 mm	1 in	1.22 m	4 ft	Tubing Flexible	1.5 mm	0.059 in	Polyolefin (PO)	90 °C	0.26 in	6.6 mm	Flame Retardant	4 to 1	Black
Sumitomo Electric Interconnect Products, Inc. B2(4X) 4 BLACK 3FT	135 °C	-55 °C	101.6 mm	4 "	914.4 mm	3 ft	Tubing Flexible	1.5 mm	0.059 in	Polyolefin (PO)	90 °C	1 in	25.4 mm	Flame Retardant	4 to 1	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 3.000" (76.20mm) 4 to 1 Black 3.00' (914.40mm)
