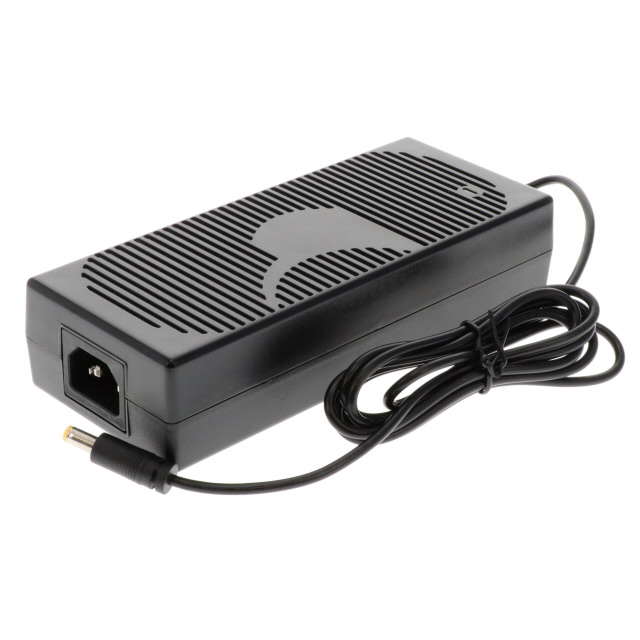

TR9CX3750CCPIMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 48V 180W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 48V 180W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CX3750CCPIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3.75 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	180 W
Region Utilized	International
Size / Dimension [x]	6.95 in
Size / Dimension [x]	176.5 mm
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	1.58 "
Size / Dimension [z]	40 mm
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V

Part	Region Utilized	Input Type	Current - Output (Max) [Max]	Efficiency	Input Connector	Form	Polarization	Output Connector	Output Connector [diameter]	Output Connector [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Voltage - Output	Standard Number	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Applications
GlobTek, Inc. TR9CX3750CCPIMR6B	International	Cord	3.75 A	CoC Tier 2 Level VI	IEC 320-C14	Desktop (Class I)	Positive Center	Barrel Plug	2.1 mm 5.5 mm	11 mm	6.95 in	1.58 "	40 mm	2.91 "	74 mm	176.5 mm	180 W	48 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.5 m	59 in	-10 °C	40 °C	150 mW	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical
GlobTek, Inc. TR9CX3750T00CIMCFR6B	International	Cord	3.75 A	CoC Tier 1 Level VI	IEC 320-C14	Desktop (Class I)		1.3mm x 3.5mm Barrel Plug Kit			6.93 in	1.58 "	40 mm	2.91 "	74 mm	176 mm	180 W	48 V	60335-1 60601-1 60950-1 62368-1	1.5 m	59 in	-10 °C	40 °C	150 mW	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48V 180 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
