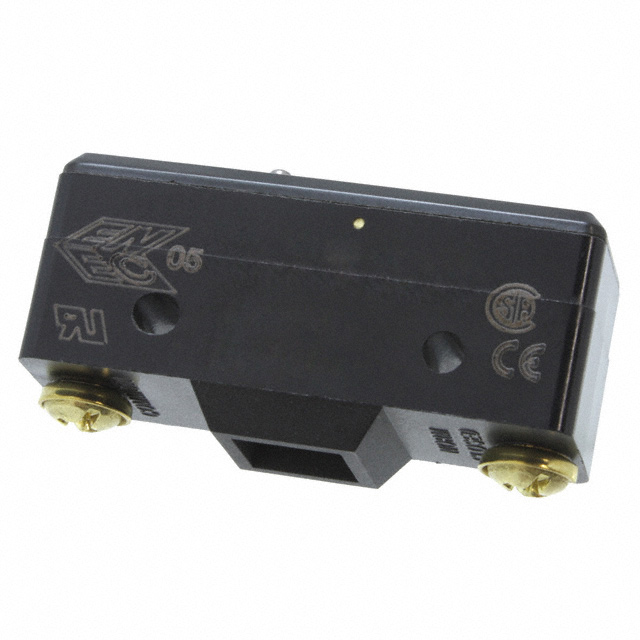

WA-2R-A2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 20A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 20A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Termination Style	Overtravel	Overtravel	Release Force	Current Rating (Amps)	Voltage Rating - DC	Operating Position	Operating Position	Mounting Type	Actuator Type	Operating Force [Min]	Operating Force [Max]	Voltage Rating - AC	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Pretravel	Pretravel	Circuit
Honeywell Sensing and Productivity Solutions WA-2R-A2	On-Mom	Screw Terminal	0.25 mm	0.01 in	283 gf	20 A 500 mA	125 VDC	0.64 in	16.3 mm	Chassis Mount	Round (Pin Plunger)	397 gf	624 gf	125 V	0.007 in	0.18 mm	85 °C	-55 °C	20000000 Cycles	0.05 in	1.27 mm	SPST-NC
Honeywell Sensing and Productivity Solutions WA-2R-A21	On-Mom	Screw Terminal	0.25 mm	0.01 in	283 gf	20 A		0.64 in	16.3 mm	Chassis Mount	Round (Pin Plunger)	397 gf	624 gf	125 V	0.007 in	0.18 mm	85 °C	-55 °C	20000000 Cycles	0.05 in	1.27 mm	SPST-NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NC Chassis Mount
