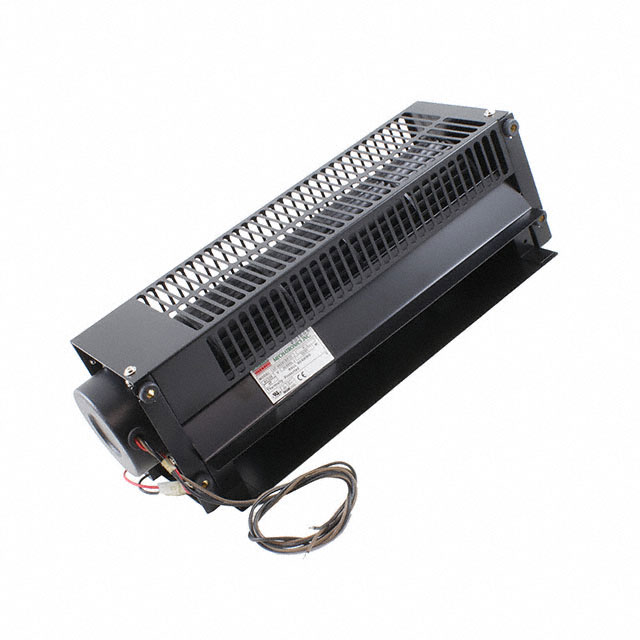

UF9029CBP23H-L

Active

Mechatronics Bearing Group

FAN BLWR CF 230VAC 420X150X130MM

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN BLWR CF 230VAC 420X150X130MM

Technical Specifications

Parameters and characteristics for this part

Specification	UF9029CBP23H-L

Air Flow	177.1 CFM
Air Flow	4.96 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Fan Type	Blower, Cross Flow
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Aluminum
Material - Frame	Steel
Noise	46 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	31 W
RPM	1560 RPM
Size / Dimension [x]	420 mm
Size / Dimension [y]	130 mm
Static Pressure	0.13 in H2O
Static Pressure	32.4 Pa
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	6.6 lbs
Weight	3 kg
Width [y]	125 mm

Part	Air Flow	Air Flow	Width [y]	Bearing Type	Features	Termination	Material - Blade	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Material - Frame	RPM	Fan Type	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Noise	Static Pressure	Static Pressure	Weight	Weight	Current Rating (Amps)
Mechatronics Bearing Group UF9029CBP23H-L	177.1 CFM	4.96 m³/min	125 mm	Ball	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	2 Wire Leads	Aluminum	31 W	70 °C	70 °C	-40 °C	-40 °C	230 VAC	Steel	1560 RPM	Blower Cross Flow	CE cUL TUV UL	420 mm	130 mm	46 dB(A)	0.13 in H2O	32.4 Pa	6.6 lbs	3 kg
Mechatronics Bearing Group UF9029CBP12H-L	177.1 CFM	4.96 m³/min	125 mm	Ball	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	2 Wire Leads	Aluminum	31 W	70 °C	70 °C	-40 °C	-40 °C	120 VAC	Steel	1560 RPM	Blower Cross Flow	CE cUL TUV UL	420 mm	130 mm	46 dB(A)	0.13 in H2O	32.4 Pa	6.6 lbs	3 kg	270 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 93.32

General part information

Fan Blower, Cross Flow 230VAC Rectangular - 420mm L x 130mm H Ball 177.1 CFM (4.96mł/min) 2 Wire Leads
