19509 B59250

Active

Belden Inc.

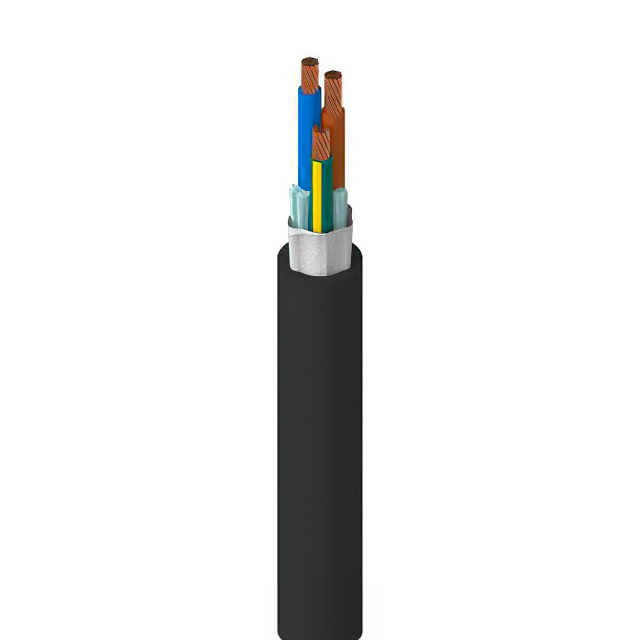

CABLE 3COND 18AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	19509 B59250

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	34 AWG, 42
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.038 in
Jacket (Insulation) Thickness	0.965 mm
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Wire Gauge	18 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Wire Gauge	Conductor Material	Length	Length	Jacket Color	Cable Type	Conductor Insulation	Number of Conductors	Conductor Strand
Belden Inc. 19509 B59250	-40 °C	105 ░C	0.038 in	0.965 mm	Poly-Vinyl Chloride (PVC)	18 AWG	Copper Bare	3000 "	76.2 m	Black	Multi-Conductor	Poly-Vinyl Chloride (PVC)	3	34 AWG 42

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG 250.0' (76.2m)
