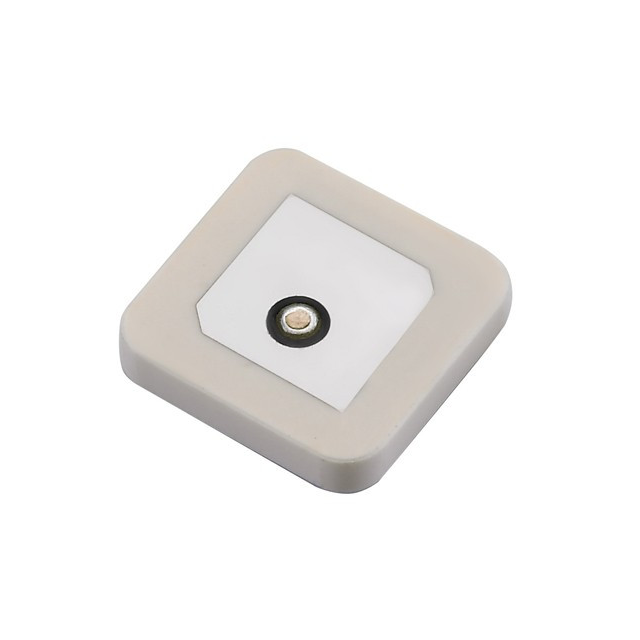

WLP.2450.25.4.A.02
ActiveTAOGLAS
RF ANT 2.4GHZ CER PATCH PIN ADH
Deep-Dive with AI
Search across all available documentation for this part.
WLP.2450.25.4.A.02
ActiveTAOGLAS
RF ANT 2.4GHZ CER PATCH PIN ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WLP.2450.25.4.A.02 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | Zigbee™, Bluetooth, Wi-Fi |
| Frequency Range [Max] | 2.525 GHz |
| Frequency Range [Min] | 2.44 GHz |
| Gain | 5 dBi |
| Height (Max) [Max] | 5 mm |
| Height (Max) [Max] | 0.197 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Return Loss | -10 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Pin |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
WLP.2450 Series
RF ANTENNA Bluetooth, Wi-Fi, Zigbee™ Ceramic Patch Pin Adhesive
Documents
Technical documentation and resources
No documents available
