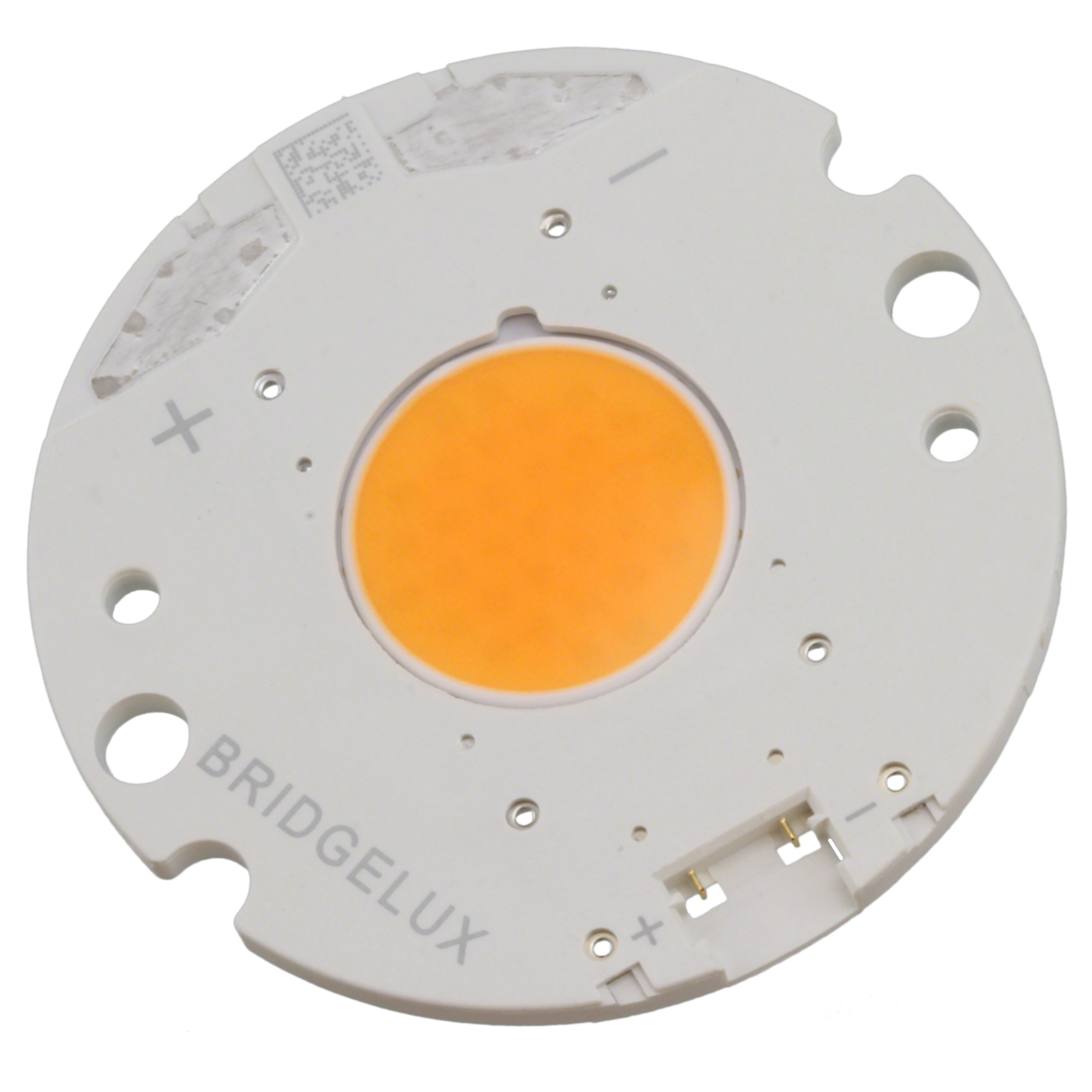

BXRC-27H2000-C-22

Obsolete

BRIDGELUX

LED COB DECOR WM WH ROUND 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-27H2000-C-22

Obsolete

BRIDGELUX

LED COB DECOR WM WH ROUND 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRC-27H2000-C-22

CCT (K)	2700 K
Color	White, Warm
Configuration	Round
CRI (Color Rendering Index)	97
Current - Max [Max]	1.5 A
Current - Test	500 mA
Features	With Connector
Height [z]	1.9 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	13.2 mm
Lumens/Watt @ Current - Test	63 lm/W
Luminous Flux @ Current/Temperature	992 lm
Size / Dimension [diameter]	36.2 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °

BXRC-27 Series

...

Part	Viewing Angle	Color	Configuration	Type	Temperature - Test	Current - Max [Max]	Luminous Flux @ Current/Temperature	Features	Current - Test	Size / Dimension [diameter]	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Lens Type	CCT (K)	Height [z]	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)
BRIDGELUX BXRC-27H2000-C-22	120 °	Warm White	Round	Chip On Board (COB)	85 °C	1.5 A	992 lm	With Connector	500 mA	36.2 mm	63 lm/W	13.2 mm	Flat	2700 K	1.9 mm	97
BRIDGELUX BXRC-27H1000-B-23	120 °	Warm White	Round	Chip On Board (COB)	85 °C	1.05 A	632 lm	With Connector	350 mA	20 mm	70 lm/W	9.9 mm	Flat	2700 K	1.9 mm	97	25.8 V
BRIDGELUX BXRC-27H1000-C-72-SE	120 °	Warm White	Round	Chip On Board (COB)	85 °C	720 mA	1173 lm		360 mA	30.8 mm	96 lm/W	9.9 mm	Flat	2700 K	3.6 mm	97	33.8 V
BRIDGELUX BXRC-27G1000-D-72-SE	120 °	Warm White	Round	Chip On Board (COB)	85 °C	700 mA	983 lm		350 mA	30.8 mm	111 lm/W	9.9 mm	Flat	2700 K	3.6 mm	90	25.3 V
BRIDGELUX BXRC-27G1000-C-72-SE	120 °	Warm White	Round	Chip On Board (COB)	85 °C	720 mA	1353 lm		360 mA	30.8 mm	111 lm/W	9.9 mm	Flat	2700 K	3.6 mm	90	33.8 V
BRIDGELUX BXRC-27G1000-C-73	120 °	Warm White	Starboard	Chip On Board (COB)		720 mA	1548 lm	With Connector	360 mA	20 mm		9.9 mm	Flat	2700 K	1.9 mm	90	34.8 V
BRIDGELUX BXRC-27H2000-D-72	120 °	Warm White	Round	Chip On Board (COB)	85 °C	1 A	1674 lm		500 mA	36.2 mm	108 lm/W	13.2 mm	Flat	2700 K	1.9 mm	97	30.9 V
BRIDGELUX BXRC-27G2000-B-72-SE	120 °	Warm White	Round	Chip On Board (COB)	85 °C	900 mA	1776 lm		450 mA	36.2 mm	116 lm/W	13.4 mm	Flat	2700 K	3.6 mm	90	33.9 V
BRIDGELUX BXRC-27H1000-D-72	120 °	Warm White	Starboard	Chip On Board (COB)	85 °C	700 mA	925 lm		350 mA	20 mm	105 lm/W	9.9 mm	Flat	2700 K	1.9 mm	97	25.3 V
BRIDGELUX BXRC-27G4000-F-03	120 °	Warm White	Round	Chip On Board (COB)		2.1 A	2920 lm	With Connector	1.05 A	36.2 mm	94 lm/W	18.4 mm	Flat	2700 K	1.9 mm	90	29.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRC-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Décor Series™ Ultra Vero® 13 White, Warm Round
