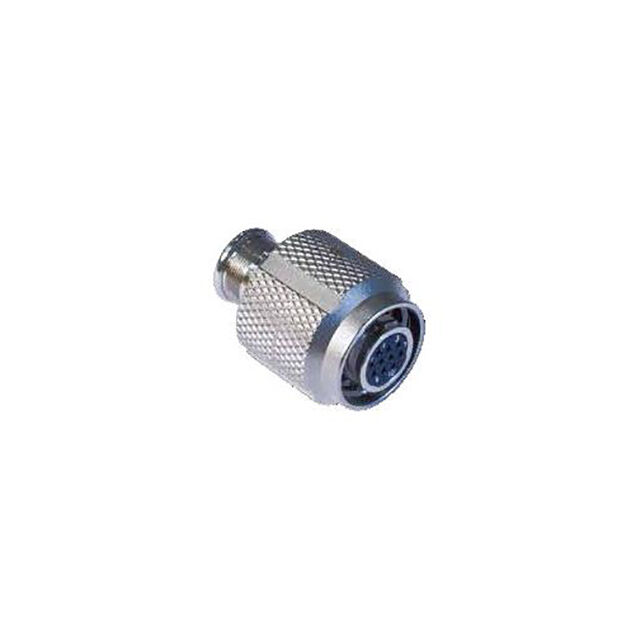

805-021-16MT12-26PC
ActiveGlenair
MIGHT MOUSE CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
805-021-16MT12-26PC
ActiveGlenair
MIGHT MOUSE CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 805-021-16MT12-26PC |
|---|---|
| Applications | Aerospace, Aviation, Military |
| Backshell Material, Plating | Aluminum |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Features | Coupling Nut |
| Ingress Protection | Environment Sealed |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Orientation | C |
| Primary Material | Metal |
| Shell Finish | Nickel, PTFE |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 26 |
| Shell Size - Insert [Min] | 12 |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2695.14 | |
| 4 | $ 2036.88 | |||
| 10 | $ 1273.02 | |||
| 20 | $ 974.98 | |||
| 50 | $ 745.20 | |||
| Bulk | 1 | $ 1983.41 | ||
Description
General part information
805-021 Series
26 Position Circular Connector Plug, Male Pins
