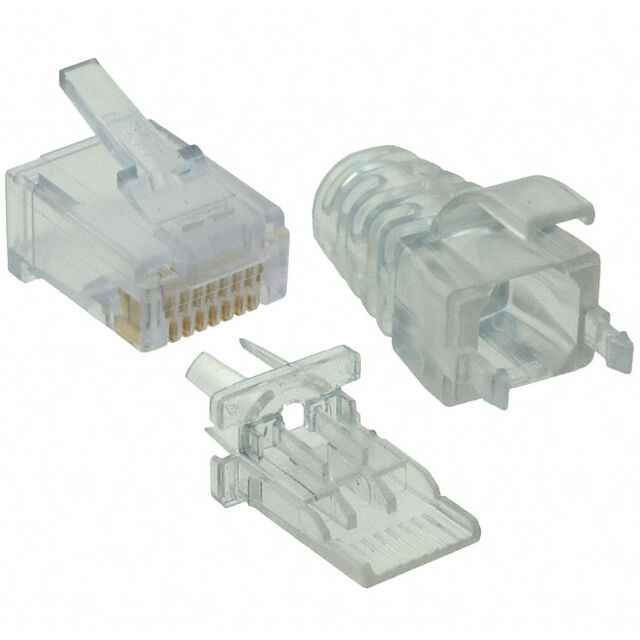

SS-39100-011

Active

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 8P8C UNSHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

SS-39100-011

Active

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 8P8C UNSHIELDED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-39100-011

Cable Type	Round Cable, Solid, Stranded Wires
Color	Translucent - Clear; Clear Boot
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Features	Molded Boot
Housing Material	Polycarbonate (PC)
Length [x]	1.47 in
Length [x]	37.34 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat6a
Shielding	Unshielded
Termination	IDC
Voltage Rating	150 VDC

SS-39100 Series

Part	Shielding	Features	Number of Positions/Contacts	Connector Type	Voltage Rating	Ratings	Length [x]	Length [x]	Cable Type	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Contact Material	Contact Finish	Housing Material	Length	Length	Length
BEL MAGNETIC SOLUTIONS SS-39100-011	Unshielded	Molded Boot	8p8c (RJ45 Ethernet)	Plug	150 VDC	Cat6a	1.47 in	37.34 mm	Round Cable Solid Stranded Wires	1.5 A	50 µin	1.27 µm	Translucent - Clear; Clear Boot	IDC	Copper Alloy	Gold	Polycarbonate (PC)
BEL MAGNETIC SOLUTIONS SS-39100-017	Unshielded	Molded Boot	8p8c (RJ45 Ethernet)	Plug	150 VDC	Cat6	1.47 in	37.34 mm	Round Cable Solid Stranded Wires	1.5 A	50 µin	1.27 µm	Translucent - Clear; Clear Boot	IDC	Copper Alloy	Gold	Polycarbonate (PC)
BEL MAGNETIC SOLUTIONS SS-39100-020	Unshielded	Molded Boot	8p8c (RJ45 Ethernet)	Plug	150 VDC	Cat6a	1.47 in	37.34 mm	Round Cable Solid Stranded Wires	1.5 A	50 µin	1.27 µm	Translucent - Clear; Clear Boot	IDC	Copper Alloy	Gold	Polycarbonate (PC)
BEL MAGNETIC SOLUTIONS SS-39100-007	Unshielded	Molded Boot	8p8c (RJ45 Ethernet)	Plug	150 VDC	Cat6			Round Cable Solid Stranded Wires	1.5 A	50 µin	1.27 µm	Translucent - Clear	IDC	Copper Alloy	Gold	Polycarbonate (PC)	37.3 mm	1.467 in
BEL MAGNETIC SOLUTIONS SS-39100-002	Unshielded		8p8c (RJ45 Ethernet)	Plug	150 VDC	Cat6			Round Cable Solid Stranded Wires	1.5 A	50 µin	1.27 µm	Translucent - Clear	IDC	Phosphor Bronze	Gold	Polycarbonate (PC)	0.885 in		22.48 mm
BEL MAGNETIC SOLUTIONS SS-39100-028	Unshielded	Cable Clamp Molded Boot	8p8c (RJ45 Ethernet)	Plug	150 VDC	Cat6a			Round Cable Solid Stranded Wires	1.5 A	50 µin	1.27 µm	Translucent - Clear	IDC	Copper Alloy	Gold	Polycarbonate (PC)	44.1 mm	1.74 in
BEL MAGNETIC SOLUTIONS SS-39100-016	Unshielded	Molded Boot	8p8c (RJ45 Ethernet)	Plug	150 VDC	Cat6	1.47 in	37.34 mm	Round Cable Solid Stranded Wires	1.5 A	50 µin	1.27 µm	Translucent - Clear	IDC	Copper Alloy	Gold	Polycarbonate (PC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.64
		10	$ 1.42
		25	$ 1.36
		50	$ 1.33
		100	$ 1.27
		250	$ 1.15
		500	$ 1.06
		1000	$ 0.91
		3000	$ 0.85
Newark	Each	1000	$ 1.05

Description

General part information

SS-39100 Series

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat6a IDC

Documents

Technical documentation and resources

No documents available
