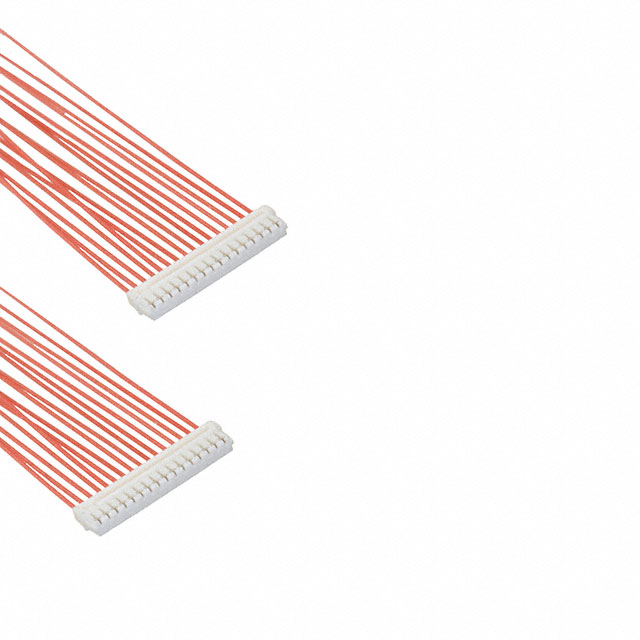

A16XSR16XSR36R102B

Active

JST Sales America Inc.

JUMPER 16XSR-36S - 16XSR-36S 4"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 16XSR-36S - 16XSR-36S 4"

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Number of Rows	Contact Finish	Length	Length	Length	Cable Termination	Pitch - Connector	Pitch - Connector	Color	Connector Type	Length [x]	Length [x]	Length [x]	Length
JST Sales America Inc. A16XSR16XSR36R152A	16	1	Tin	152.4 mm	6 "	0.5 '	IDC	0.024 "	0.6 mm	Individual Red	Socket to Socket Reversed
JST Sales America Inc. A16XSR16XSR36R102B	16	1	Tin				IDC	0.024 "	0.6 mm	Individual Red	Socket to Socket	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A16XSR16XSR36R51B	16	1	Tin	50.8 mm	2 "		IDC	0.024 "	0.6 mm	Individual Red	Socket to Socket				0.167 '
JST Sales America Inc. A16XSR16XSR36R295A	16	1	Tin				IDC	0.024 "	0.6 mm	Individual Red	Socket to Socket Reversed	11.61 "	0.968 '	295 mm
JST Sales America Inc. A16XSR16XSR36R203B	16	1	Tin	203.2 mm	8 in		IDC	0.024 "	0.6 mm	Individual Red	Socket to Socket				0.667 ft
JST Sales America Inc. A16XSR16XSR36R203A	16	1	Tin	203.2 mm	8 in		IDC	0.024 "	0.6 mm	Individual Red	Socket to Socket Reversed				0.667 ft
JST Sales America Inc. A16XSR16XSR36R254A	16	1	Tin	254 mm	10 in		IDC	0.024 "	0.6 mm	Individual Red	Socket to Socket Reversed				0.833 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Cable Assembly Rectangular Socket to Socket 0.333' (101.60mm, 4.00")
