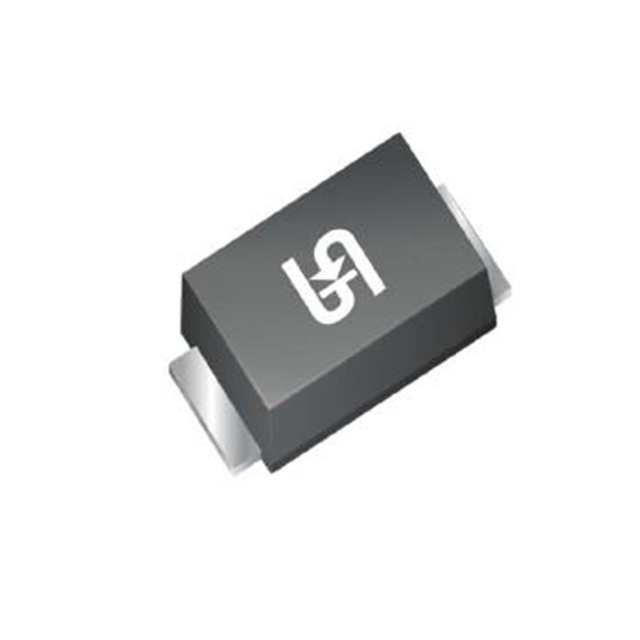

BZD17C36P MTG

Active

Taiwan Semiconductor Corporation

DIODE ZENER 36V 800MW SUB SMA

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE ZENER 36V 800MW SUB SMA

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Tolerance	Supplier Device Package	Power - Max [Max]	Voltage - Zener (Nom) (Vz)	Current - Reverse Leakage @ Vr	Mounting Type	Impedance (Max) (Zzt) [Max]	Qualification	Grade	Impedance (Max) (Zzt)
Taiwan Semiconductor Corporation BZD17C43P RQG	1.2 V	-55 °C	175 ░C	DO-219AB	6.97 %	Sub SMA	800 mW	43 V	1 µA	Surface Mount
Taiwan Semiconductor Corporation BZD17C16P RHG	1.2 V	-55 °C	175 ░C	DO-219AB	5.625 %	Sub SMA	800 mW	16 V	1 µA	Surface Mount	15 Ohms
Taiwan Semiconductor Corporation BZD17C11P R3G	1.2 V	-55 °C	175 ░C	DO-219AB	5.45 %	Sub SMA	800 mW	11 V		Surface Mount	7 Ohms
Taiwan Semiconductor Corporation BZD17C47PH	1 V	-55 °C	175 ░C	SOD-123	5 %	Sub SMA	1 W	47 V	1 µA	Surface Mount		AEC-Q101	Automotive
Taiwan Semiconductor Corporation BZD17C47P	1.2 V	-55 °C	175 ░C	SOD-123	6.38 %	Sub SMA	800 mW	47 V	1 µA	Surface Mount
Taiwan Semiconductor Corporation BZD17C180P R3G	1.2 V	-55 °C	175 ░C	DO-219AB	6.38 %	Sub SMA	800 mW	180 V	1 µA	Surface Mount	450 Ohms
Taiwan Semiconductor Corporation BZD17C100P RVG	1.2 V	-55 °C	175 ░C	DO-219AB	6 %	Sub SMA	800 mW	100 V	1 µA	Surface Mount	200 Ohms
Taiwan Semiconductor Corporation BZD17C15P R3G	1.2 V	-55 °C	175 ░C	DO-219AB	5 %	Sub SMA	800 mW	15 V	1 µA	Surface Mount				10 Ohms
Taiwan Semiconductor Corporation BZD17C39P RVG	1.2 V	-55 °C	175 ░C	DO-219AB	5.12 %	Sub SMA	800 mW	39 V	1 µA	Surface Mount	40 Ohms
Taiwan Semiconductor Corporation BZD17C36P MTG	1.2 V	-55 °C	175 ░C	DO-219AB	5.55 %	Sub SMA	800 mW	36 V	1 µA	Surface Mount	40 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Zener Diode 36 V 800 mW ±5.55% Surface Mount Sub SMA
