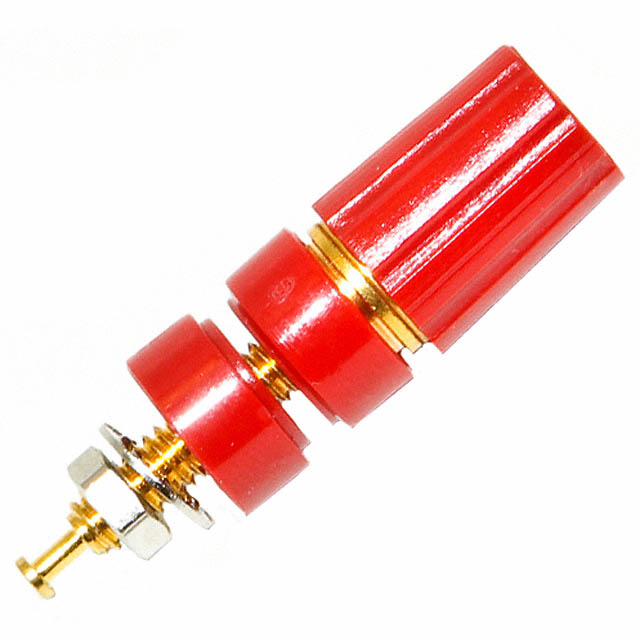

BU-P3750-2

Active

Mueller Electric Co

BINDING POST, 15 A, 2.5 KV, GOLD PLATED CONTACTS, PANEL MOUNT, RED

Search across all available documentation for this part.

Active

Mueller Electric Co

BINDING POST, 15 A, 2.5 KV, GOLD PLATED CONTACTS, PANEL MOUNT, RED

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P3750-2

Color	Red
Cross Hole Diameter [diameter]	0.096 in
Cross Hole Diameter [diameter]	2.43 mm
Current Rating (Amps)	15 A
Head Size	11.18 mm
Head Size [diameter]	0.44 "
Material - Body	Brass
Material - Insulation	Polycarbonate
Material - Insulation	PC
Plating - Body [custom]	Gold
Termination	Turret, Threaded
Type	Standard
Voltage Rating	2500 V

Part	Termination	Material - Body	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]	Voltage Rating	Head Size [diameter]	Head Size	Color	Material - Insulation	Material - Insulation	Current Rating (Amps)	Plating - Body [custom]	Type
Mueller Electric Co BU-P3750-2	Threaded Turret	Brass	0.096 in	2.43 mm	2500 V	0.44 "	11.18 mm	Red	Polycarbonate	PC	15 A	Gold	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Binding Post Connector Standard Knurled Red Gold
