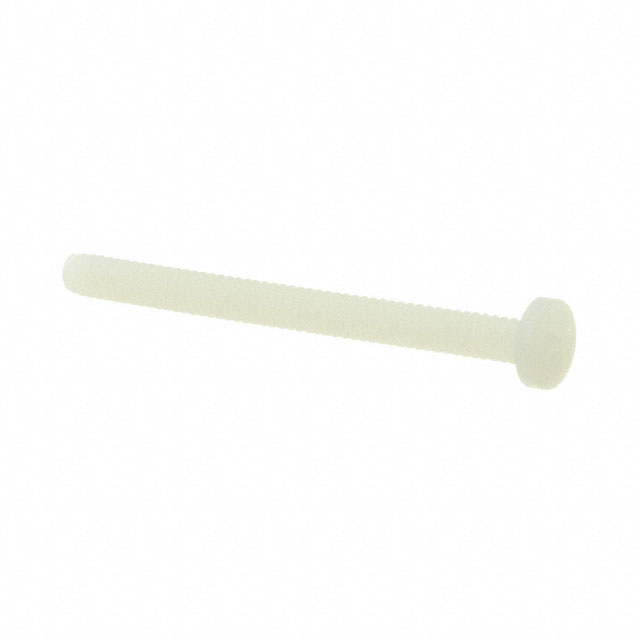

010632PW162

Active

Essentra Access Solutions

PAN PHILLIPS SCREW 6-32 THREAD 1

Deep-Dive with AI

Search across all available documentation for this part.

010632PW162

Active

Essentra Access Solutions

PAN PHILLIPS SCREW 6-32 THREAD 1

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	010632PW162

Drive Type	Phillips
Head Diameter [diameter]	6.68 mm
Head Diameter [diameter]	0.263 in
Head Height	0.092 in
Head Height	2.34 mm
Material	Nylon
Screw Head Type	Pan Head
Thread Size	#6-32
Type	Machine Screw

010632PW Series

Part	Screw Head Type	Length - Overall [x]	Length - Overall [x]	Thread Size	Material	Length - Below Head [custom]	Length - Below Head [custom]	Head Diameter [diameter]	Head Diameter [diameter]	Type	Drive Type	Head Height	Head Height	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head
Essentra Access Solutions 010632PW043	Pan Head	13.45 mm	0.53 in	#6-32	Nylon	0.438 in	11.11 mm	6.68 mm	0.263 in	Machine Screw	Phillips	0.092 in	2.34 mm
Essentra Access Solutions 010632PW018	Pan Head			#6-32	Nylon			6.68 mm	0.263 in	Machine Screw	Phillips	0.092 in	2.34 mm
Essentra Access Solutions 010632PW100	Pan Head	27.74 mm	1.092 "	#6-32	Nylon			6.68 mm	0.263 in	Machine Screw	Phillips	0.092 in	2.34 mm	25.4 mm	1 in
Essentra Access Solutions 010632PW162	Pan Head			#6-32	Nylon			6.68 mm	0.263 in	Machine Screw	Phillips	0.092 in	2.34 mm
Essentra Access Solutions 010632PW062	Pan Head	18.21 mm	0.717 "	#6-32	Nylon			6.68 mm	0.263 in	Machine Screw	Phillips	0.092 in	2.34 mm	15.88 mm	0.625 in	0.625 in
Essentra Access Solutions 010632PW015	Pan Head			#6-32	Nylon			6.68 mm	0.263 in	Machine Screw	Phillips	0.092 in	2.34 mm
Essentra Access Solutions 010632PW056	Pan Head			#6-32	Nylon			6.68 mm	0.263 in	Machine Screw	Phillips	0.092 in	2.34 mm	14.29 mm	0.563 in
Essentra Access Solutions 010632PW050	Pan Head	15.04 mm	0.592 in	#6-32	Nylon			6.68 mm	0.263 in	Machine Screw	Phillips	0.092 in	2.34 mm	12.7 mm	0.5 in		1/2
Essentra Access Solutions 010632PW009	Pan Head	4.72 mm	0.186 in	#6-32	Nylon			6.68 mm	0.263 in	Machine Screw	Phillips	0.092 in	2.34 mm
Essentra Access Solutions 010632PW175	Pan Head			#6-32	Nylon			6.68 mm	0.263 in	Machine Screw	Phillips	0.092 in	2.34 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		5	$ 0.05
		10	$ 0.05
		25	$ 0.04
		50	$ 0.04
		100	$ 0.04
		250	$ 0.03
		500	$ 0.03
		1000	$ 0.03

Description

General part information

010632PW Series

#6-32 Pan Head Machine Screw Phillips Drive Nylon

Documents

Technical documentation and resources

No documents available
