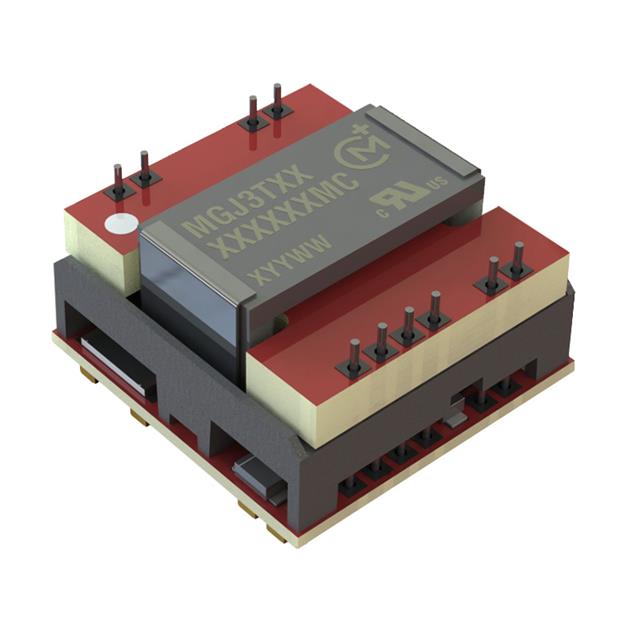

MGJ3T05150505MC-R7
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V -10V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGJ3T05150505MC-R7
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V -10V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGJ3T05150505MC-R7 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) | 120 mA |
| Current - Output (Max) | 120 mA |
| Efficiency | 80 % |
| Features | SCP, UVLO |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SMD Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 23 mm |
| Size / Dimension [x] | 0.91 " |
| Size / Dimension [y] | 0.89 in |
| Size / Dimension [y] | 22.6 mm |
| Size / Dimension [z] | 0.58 " |
| Size / Dimension [z] | 14.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 9 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 5.2 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MGJ3T05 Series
Isolated Module DC DC Converter 2 Output 15V -10V 120mA, 120mA 4.5V - 9V Input
