AP10-331EAL0000000
ActiveSifam Tinsley Instrumentation Inc
MULT METER 1-5A/100-500V LED PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AP10-331EAL0000000 |
|---|---|
| Display Type | LED - Red Characters |
| Ingress Protection [custom] | IP65 |
| Ingress Protection [custom] | IP20 |
| Measuring Range [Max] | 500 V, 5 A |
| Measuring Range [Min] | 1 A, 100 V |
| Measuring Type | Current (3-Phase), Voltage |
| Number of Characters Per Row | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 92.8 mm |
| Panel Cutout Dimensions [y] | 92.8 mm |
| Termination Style | Screw Terminal |
| Type | Ammeter, Volmeter |
| Voltage - Supply [Max] | 40 VAC |
| Voltage - Supply [Min] | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 125.00 | |
Description
General part information
AP10-331 Series

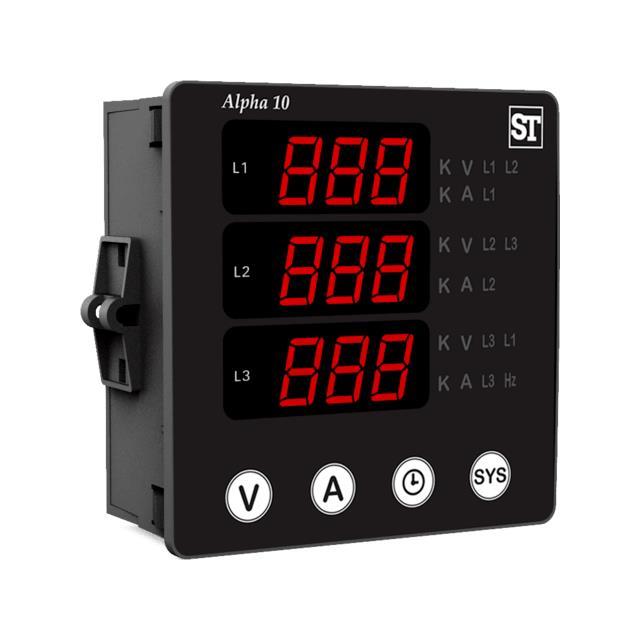

Ammeter, Voltmeter LED - Red Characters Display Panel Mount
