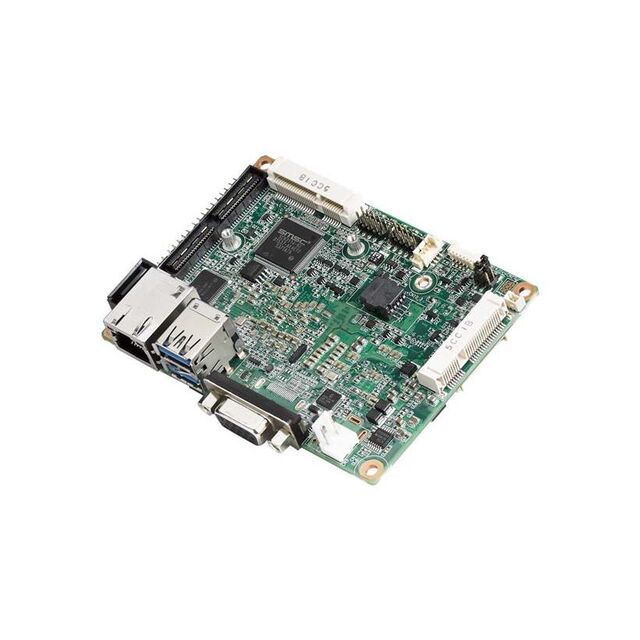

MIO-2360N-S1A2

Active

Advantech Corp

SBC 2.4GHZ 2 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 2.4GHZ 2 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	MIO-2360N-S1A2

Core Processor	Intel Celeron N3350E
Digital I/O Lines	8
Ethernet	100, 1000, 10
Ethernet	RJ45
Expansion Site/Bus	Full mPCIe
Number of Cores	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	2
Size / Dimension [x]	3.94 in
Size / Dimension [x]	100.07 mm
Size / Dimension [y]	71.88 mm
Size / Dimension [y]	2.83 in
Storage Interface	mSATA, SATA
USB	2, 2
Video Outputs	HDMI, VGA, LVDS
Watchdog Timer	True

Part	Ethernet	Watchdog Timer	Expansion Site/Bus	Number of Cores	Digital I/O Lines	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	Video Outputs	Form Factor	USB	RS-232 (422, 485)	Core Processor	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Storage Interface	Operating Temperature [Max]	Operating Temperature [Min]	Ethernet	USB
Advantech Corp MIO-2360N-S1A1E	10 Mbps 100 Mbps 1000 Mbps		Full mPCIe	2	8	8 GB	0 GB	HDMI LVDS VGA	SO-DIMM	USB 3.0 (2)	2	Intel Celeron N3350	3.94 in	71.88 mm	2.83 in	100.07 mm	mSATA SATA	60 °C	0 °C
Advantech Corp MIO-2360N-S1A2	10 100 1000		Full mPCIe	2	8	8 GB	0 GB	HDMI LVDS VGA			2	Intel Celeron N3350E	3.94 in	71.88 mm	2.83 in	100.07 mm	mSATA SATA	60 °C	0 °C	RJ45	2 2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 296.31

General part information

Single Board Computer 2.4GHz 2 Core 8GB/0GB RAM Intel Celeron N3350E
