3.14.200.735/0000

Active

RAFI USA

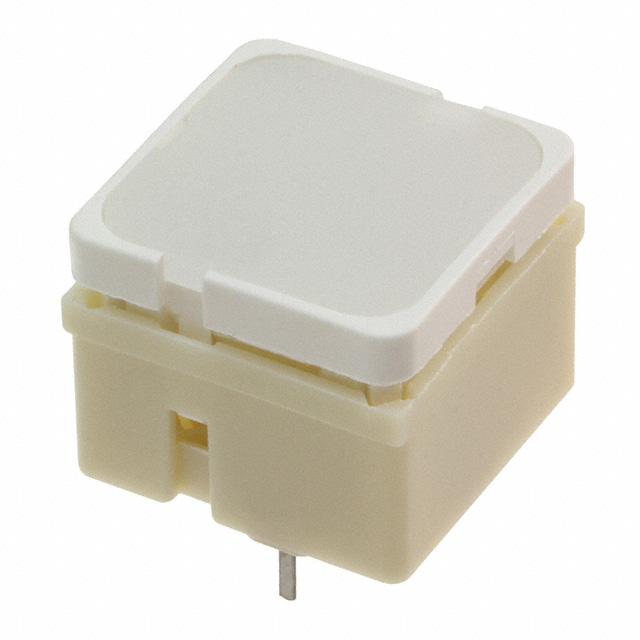

SWITCH TACTILE SPST-NO 0.1A 35V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRF15 Datasheet Datasheet

3.14.200.735/0000

Active

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 35V

Deep-Dive with AI

DocumentsRF15 Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3.14.200.735/0000

Actuator Height off PCB, Vertical [z]	12.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	35 VAC/DC, 0.1 A
Illumination	Illuminated
Illumination Type, Color	White, LED
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	296 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	15 mm
Outline [y]	15 mm
Switch Function	Off-Mom
Switch Travel	0.5 mm
Termination Style	PC Pin

3.14.200 Series

Part	Operating Force	Mechanical Life	Contact Rating @ Voltage	Actuator Height off PCB, Vertical	Switch Function	Illumination	Termination Style	Illumination Type, Color	Actuator Orientation	Mounting Type	Switch Travel	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Circuit	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Actuator Height off PCB, Vertical [z]
RAFI USA 3.14.200.014/0000	296 gf	1000000 Cycles	0.1 A 35 VAC/DC	9.7 mm	Off-Mom	Illuminated	PC Pin	LED Yellow	Top Actuated	Through Hole	0.5 mm	15 mm	15 mm	70 °C	-25 °C	Square Button	SPST-NO
RAFI USA 3.14.200.012/0000	296 gf	1000000 Cycles	0.1 A 35 VAC/DC	9.7 mm	Off-Mom	Illuminated	PC Pin	Green LED	Top Actuated	Through Hole	0.5 mm	15 mm	15 mm	70 °C	-25 °C	Square Button	SPST-NO
RAFI USA 3.14.200.022/0000	296 gf	1000000 Cycles		9.7 mm	Off-Mom	Illuminated	PC Pin	Green LED	Top Actuated	Through Hole	0.5 mm	15 mm	15 mm	70 °C	-25 °C	Square Button	SPST-NO	35 VAC/DC	0.25 A
RAFI USA 3.14.200.915/0000	296 gf	1000000 Cycles		9.7 mm	Off-Mom	Illuminated	PC Pin	LED Yellow	Top Actuated	Through Hole	0.5 mm	15 mm	15 mm	70 °C	-25 °C	Square Button	SPST-NO	35 VAC/DC	0.25 A
RAFI USA 3.14.200.011/0000	296 gf	1000000 Cycles	0.1 A 35 VAC/DC	9.7 mm	Off-Mom	Illuminated	PC Pin	LED Red	Top Actuated	Through Hole	0.5 mm	15 mm	15 mm	70 °C	-25 °C	Square Button	SPST-NO
RAFI USA 3.14.200.024/0000	296 gf	1000000 Cycles		9.7 mm	Off-Mom	Illuminated	PC Pin	LED Yellow	Top Actuated	Through Hole	0.5 mm	15 mm	15 mm	70 °C	-25 °C	Square Button	SPST-NO	35 VAC/DC	0.25 A
RAFI USA 3.14.200.923/0000	296 gf	1000000 Cycles	0.1 A 35 VAC/DC	9.7 mm	Off-Mom	Illuminated	PC Pin	Green/Red LED	Top Actuated	Through Hole	0.5 mm	15 mm	15 mm	70 °C	-25 °C	Square Button	SPST-NO
RAFI USA 3.14.200.746/0000	296 gf	1000000 Cycles			Off-Mom	Illuminated	PC Pin	LED White	Top Actuated	Through Hole	0.5 mm	15 mm	15 mm	70 °C	-25 °C	Square Button	SPST-NO	35 VAC/DC	0.25 A	12.5 mm
RAFI USA 3.14.200.735/0000	296 gf	1000000 Cycles	0.1 A 35 VAC/DC		Off-Mom	Illuminated	PC Pin	LED White	Top Actuated	Through Hole	0.5 mm	15 mm	15 mm	70 °C	-25 °C	Square Button	SPST-NO			12.5 mm
RAFI USA 3.14.200.903/0000	296 gf	1000000 Cycles	0.1 A 35 VAC/DC	9.7 mm	Off-Mom	Illuminated	PC Pin	Green LED	Top Actuated	Through Hole	0.5 mm	15 mm	15 mm	70 °C	-25 °C	Square Button	SPST-NO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 24.84
		10	$ 20.07
		25	$ 18.40
		100	$ 16.09
		250	$ 14.69
		500	$ 13.70

Description

General part information

3.14.200 Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

RF15 Datasheet

Datasheet
