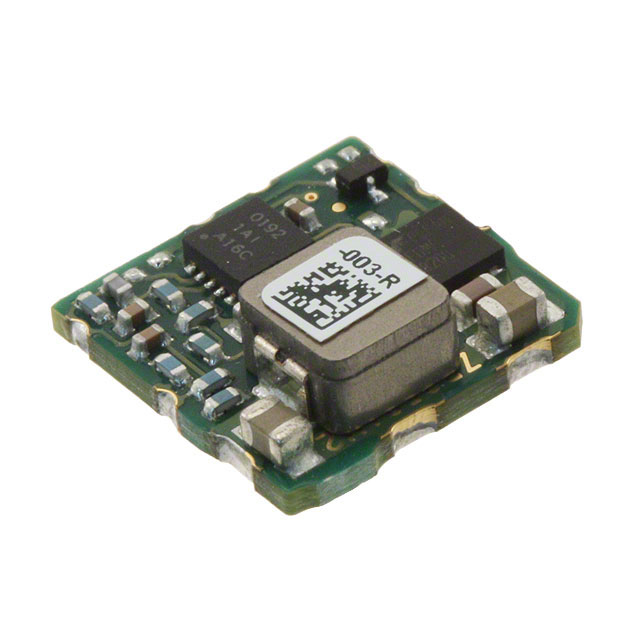

ICF05003A006V-001-R
ActiveTDK-LAMBDA
NON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 16.5 W, 600 MV, 3.63 V, 3 A
Deep-Dive with AI
Search across all available documentation for this part.
ICF05003A006V-001-R
ActiveTDK-LAMBDA
NON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 16.5 W, 600 MV, 3.63 V, 3 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICF05003A006V-001-R |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 92 % |
| Features | OTP, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module |
| Power (Watts) | 11 W |
| Size / Dimension [x] | 0.48 in |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [y] | 12.2 mm |
| Size / Dimension [y] | 0.48 in |
| Size / Dimension [z] | 3.7 mm |
| Size / Dimension [z] | 0.14 " |
| Supplier Device Package | 10-SMD Module |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.4 V |
| Voltage - Output 1 [Max] | 3.63 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ICF05003 Series
ICF05003A006V-001-R is an iCF series non-isolated SMT point of load. It includes overcurrent protection. Application includes industrial, test, communication and broadcast. Certified by IEC60950-1, CSA C22.2 No.60950-1, EN60950-1, UL60950-1, VDE 0805-1.
