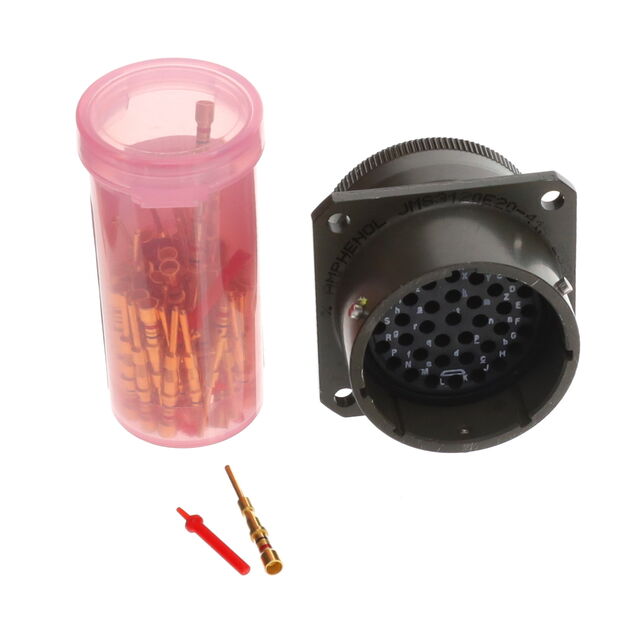

MS3120E20-41P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

MS3120E20-41P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3120E20-41P

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	41
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	41
Shell Size - Insert [Min]	20
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

MS3120E20 Series

Part	Ingress Protection	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Termination	Insert Material	Applications	Qualification	Contact Finish - Mating	Voltage Rating	Shell Finish	Grade	Orientation	Contact Material	Number of Positions	Primary Material	Mounting Feature	Current Rating (Amps)	Shell Material	Shielding	Fastening Type	Number of Positions	Backshell Material, Plating	Features	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]
Amphenol Industrial Operations MS3120E20-41S	Environment Resistant	20	41	-55 °C	125 °C	Olive Drab	Receptacle Female Sockets	Crimp	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Gold	600 VAC	Olive Drab Chromate over Cadmium	Military	N	Copper Alloy	41	Metal	Flange	7.5 A	Aluminum	Unshielded	Bayonet Lock
Amphenol Industrial Operations MS3120E20-41P	Environment Resistant	20	41	-55 °C	125 °C	Olive Drab	Male Pins Receptacle	Crimp	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Gold	600 VAC	Olive Drab Chromate over Cadmium	Military	N	Copper Alloy	41	Metal	Flange	7.5 A	Aluminum	Unshielded	Bayonet Lock
Amphenol Industrial Operations MS3120E20-16P	Environment Resistant			-55 °C	125 °C	Olive Drab	Male Pins Receptacle	Crimp	Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Gold		Olive Drab Chromate over Cadmium	Military	N	Copper Alloy		Metal	Flange		Aluminum	Unshielded	Bayonet Lock	16	Aluminum Olive Drab Chromate over Cadmium	Backshell	20	16
Amphenol Industrial Operations MS3120E20-39P	Environment Resistant	20	39	-55 °C	125 °C	Olive Drab	Male Pins Receptacle	Crimp	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	Gold	600 VAC	Olive Drab Chromate over Cadmium	Military	N	Copper Alloy	39	Metal	Flange	7.5 A 13 A	Aluminum	Unshielded	Bayonet Lock
Amphenol Industrial Operations MS3120E20-39P(LC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 204.36
		10	$ 189.37
		25	$ 182.56
		50	$ 181.20

Description

General part information

MS3120E20 Series

41 Position Circular Connector Receptacle, Male Pins Crimp
