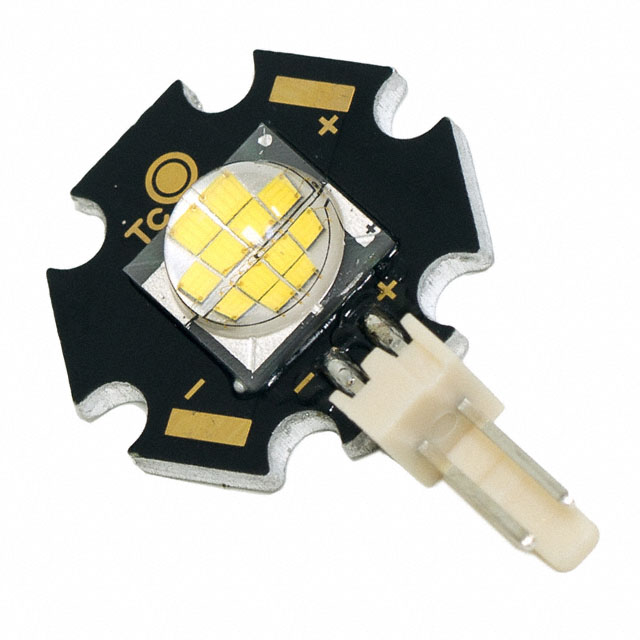

L2-TGN1-F

Obsolete

Bivar Inc.

LED MOD L2 XLAMP STARBRD 4000K

Search across all available documentation for this part.

Obsolete

Bivar Inc.

LED MOD L2 XLAMP STARBRD 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	L2-TGN1-F

CCT (K)	4000 K
Color	Neutral, White
Configuration	Starboard
CRI (Color Rendering Index)	80
Current - Max [Max]	2.5 A
Current - Test	200 mA
Features	With Connector
Height [z]	6.8 mm
Lens Type	Domed
Luminous Flux @ Current/Temperature	141 lm
Size / Dimension [x]	19.9 mm
Size / Dimension [y]	19.9 mm
Temperature - Test	70 °C
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	5.25 V

Part	Voltage - Forward (Vf) (Typ)	Features	CCT (K)	Current - Test	Lens Type	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Viewing Angle	Color	Luminous Flux @ Current/Temperature	Temperature - Test	Type	Current - Max [Max]	Configuration
Bivar Inc. L2-TGN1-F	5.25 V	With Connector	4000 K	200 mA	Domed	80	19.9 mm	19.9 mm	6.8 mm	120 °	Neutral White	141 lm	70 °C	LED Module	2.5 A	Starboard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module L2, XLamp® XT-G White, Neutral Starboard
