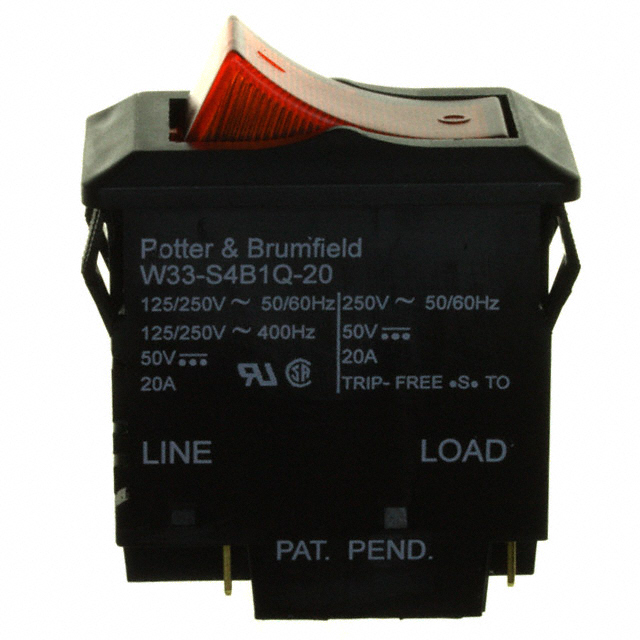

W33-S4B1Q-20

Active

TE Connectivity Potter & Brumfield Relays

CIR BRKR THRM 20A 250VAC 50VDC

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

CIR BRKR THRM 20A 250VAC 50VDC

Technical Specifications

Parameters and characteristics for this part

Specification	W33-S4B1Q-20

Actuator Type	Rocker
Breaker Type	Thermal
Current Rating (Amps)	20 A
Illumination	Amber
Illumination Voltage (Nominal)	120 V
Number of Poles	2
Voltage Rating - AC	250 V
Voltage Rating - DC	50 VDC

Part	Current Rating (Amps)	Voltage Rating - AC	Number of Poles	Actuator Type	Illumination Voltage (Nominal)	Breaker Type	Voltage Rating - DC	Illumination
TE Connectivity Potter & Brumfield Relays W33-T4C1Q-10	10 A	250 V	2	Rocker	240 V	Thermal	50 VDC	Amber
TE Connectivity Potter & Brumfield Relays W33-T2N1Q-5	5 A	250 V	2	Rocker		Thermal	50 VDC
TE Connectivity Potter & Brumfield Relays W33-T4B1Q-5	5 A	250 V	2	Rocker	120 V	Thermal	50 VDC	Amber
TE Connectivity Potter & Brumfield Relays W33-S4B1Q-5	5 A	250 V	2	Rocker	120 V	Thermal	50 VDC	Amber
TE Connectivity Potter & Brumfield Relays W33-T2C1Q-10	10 A	250 V	2	Rocker	240 V	Thermal	50 VDC	White
TE Connectivity Potter & Brumfield Relays W33-S1N1Q-20	20 A	250 V	2	Rocker		Thermal	50 VDC
TE Connectivity Potter & Brumfield Relays W33-S5B1Q-2	2 A	250 V	2	Rocker	120 V	Thermal	50 VDC	Smoke
TE Connectivity Potter & Brumfield Relays W33-S1N1Q-15	15 A	250 V	2	Rocker		Thermal	50 VDC
TE Connectivity Potter & Brumfield Relays W33-T4B1Q-15	15 A	250 V	2	Rocker	120 V	Thermal	50 VDC	Amber
TE Connectivity Potter & Brumfield Relays W33-S4B1Q-20	20 A	250 V	2	Rocker	120 V	Thermal	50 VDC	Amber

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circuit Breaker Thermal 20A 250 V AC 50 V DC Rocker Panel Mount
