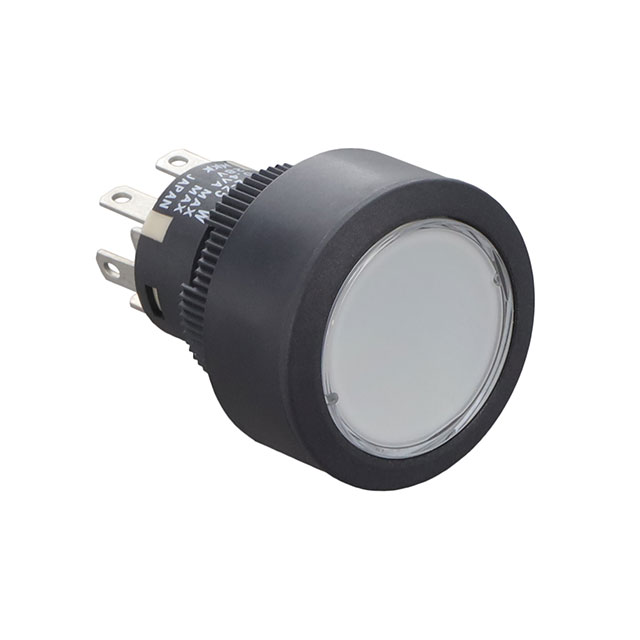

YB225CWCKG01-N-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB225CWCKG01-N-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB225CWCKG01-N-JB

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB225C Series

Part	Actuator Type	Color - Actuator/Cap	Features	Mechanical Life	Actuator Marking	Mounting Type	Current Rating (Amps)	Electrical Life	Circuit	Ingress Protection	Voltage Rating - AC	Type	Voltage Rating - DC	Termination Style	Termination Style	Termination Style	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Illumination Type, Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches YB225CWCKG01-N-JB	Button Flush Round	Clear	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	0.4 VA	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	28 V	Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	70 °C	-25 °C	22 mm
NKK Switches YB225CWCPW01-5F24-FB	Button Flush Round	Green	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Illuminated Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	50 °C	-25 °C	22 mm	24 V	Green LED
NKK Switches YB225CWSSW01	Plunger for Cap		Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	70 °C	-25 °C				21 mm	21 mm
NKK Switches YB225CWCKW01-N-CB	Button Flush Round	Red	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	70 °C	-25 °C	22 mm
NKK Switches YB225CWCKW01-5C-JS	Button Flush Round	Silver	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Illuminated Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	50 °C	-25 °C	22 mm	1.9 VDC	LED Red
NKK Switches YB225CWCKW01-5C-CB	Button Flush Round	Red	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Illuminated Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	50 °C	-25 °C	22 mm	1.9 VDC	LED Red
NKK Switches YB225CWCKW01-5D12-JB	Button Flush Round	Clear	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Illuminated Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	50 °C	-25 °C	22 mm	12 VDC	Amber LED
NKK Switches YB225CWCKW01/CUL-N-CB	Button Flush Round	Red	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	70 °C	-25 °C	22 mm
NKK Switches YB225CWCSG01	Plunger for Cap		Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	0.4 VA	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	28 V	Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	70 °C	-25 °C	22 mm
NKK Switches YB225CWCKW01-6F-JS	Button Flush Round	Silver	Tactile Feedback	1000000 Cycles	No Marking	Panel Mount Front	3 A	100000 Cycles	DPDT	IP65 - Dust Tight Water Resistant	125 V	Illuminated Standard	30 V	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	50 °C	-25 °C	22 mm	3.3 VDC	Green LED
