105121NP
ActiveLAPP

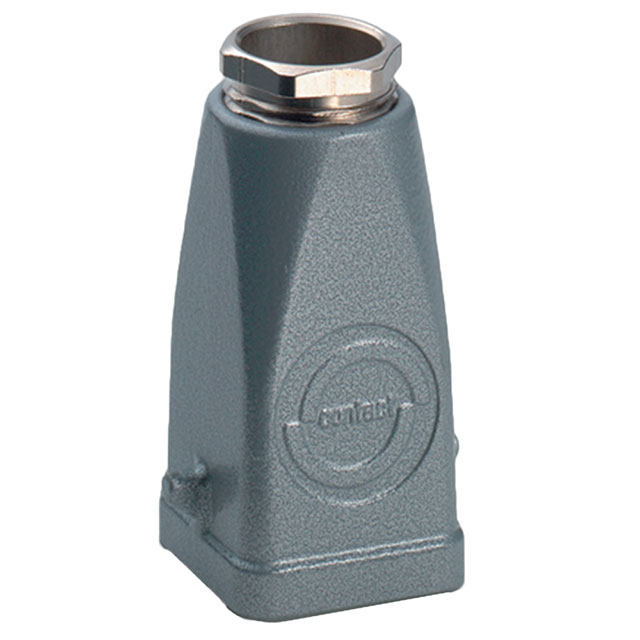

CONN HOOD HA3/4 TE NPT1/2"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 105121NP |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Zinc Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | HA3/4 |
| Size / Dimension [x] | 26.8 mm |
| Size / Dimension [x] | 1.055 " |
| Size / Dimension [y] | 1.055 " |
| Size / Dimension [y] | 26.8 mm |
| Size / Dimension [z] | 1.969 in |
| Size / Dimension [z] | 50 mm |
| Style | Top Entry |
| Thread Size | NPT-1/2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.12 | |
| 10 | $ 18.59 | |||
| 25 | $ 16.83 | |||
| 50 | $ 15.65 | |||
| 100 | $ 14.57 | |||
| 250 | $ 13.30 | |||
| 500 | $ 12.44 | |||
Description
General part information
105121 Series
Hood Connector Top Entry NPT-1/2 HA3/4 IP65 - Dust Tight, Water Resistant
